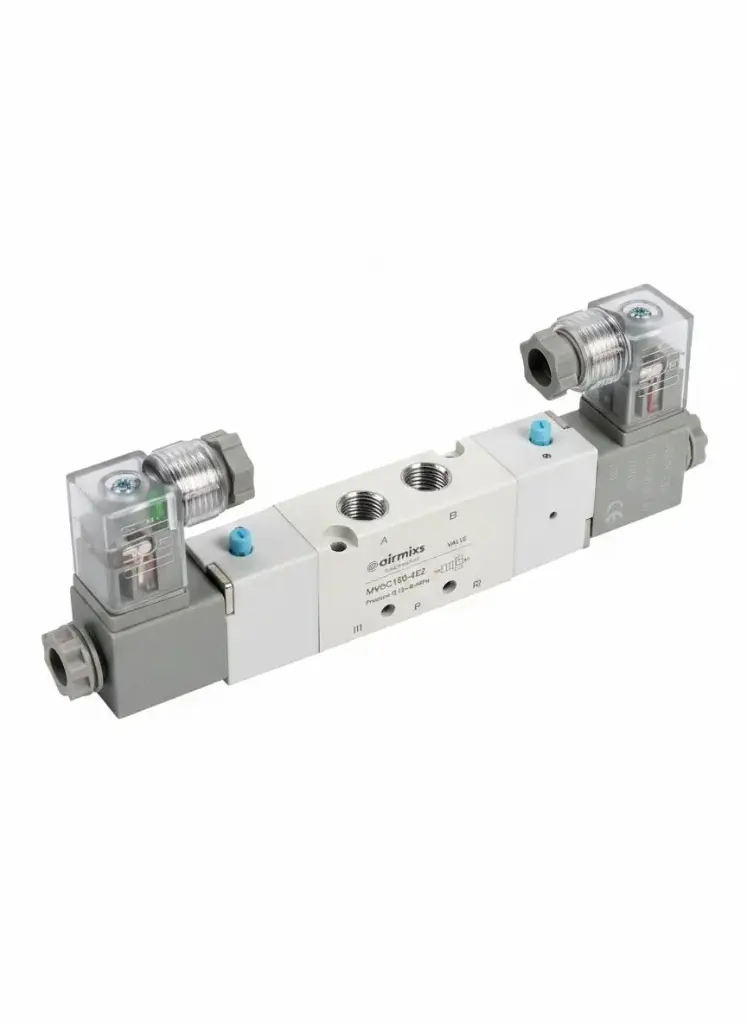

The MVSC-180-4E2 is a core component for automation systems requiring reliable directional control in a limited footprint. Its 1/8" porting provides efficient airflow for small-to-medium pneumatic actuators, ensuring rapid and repeatable machine cycles.
Feature | Specification |
|---|
Model | MVSC-180-4E2 |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Double Solenoid(Bistable / Latching) |
Port Size | 1/8" (G ) |
Effective Orifice | 12 $mm^2$(Cv $\approx$0.67) |
Operating Pressure | 0.15 – 0.8 MPa(21.7 to 116 PSI) |
Response Time | $\leq$25 ms |
Operating Temp. | -5°C to 50°C (Non-freezing) |
Power Consumption | DC: 2.5W / AC: 4.9VA |
Protection Class | IP65(Dust and Water-Jet Resistant) |
Body Material | Aluminum Alloy with HNBR Seals |
