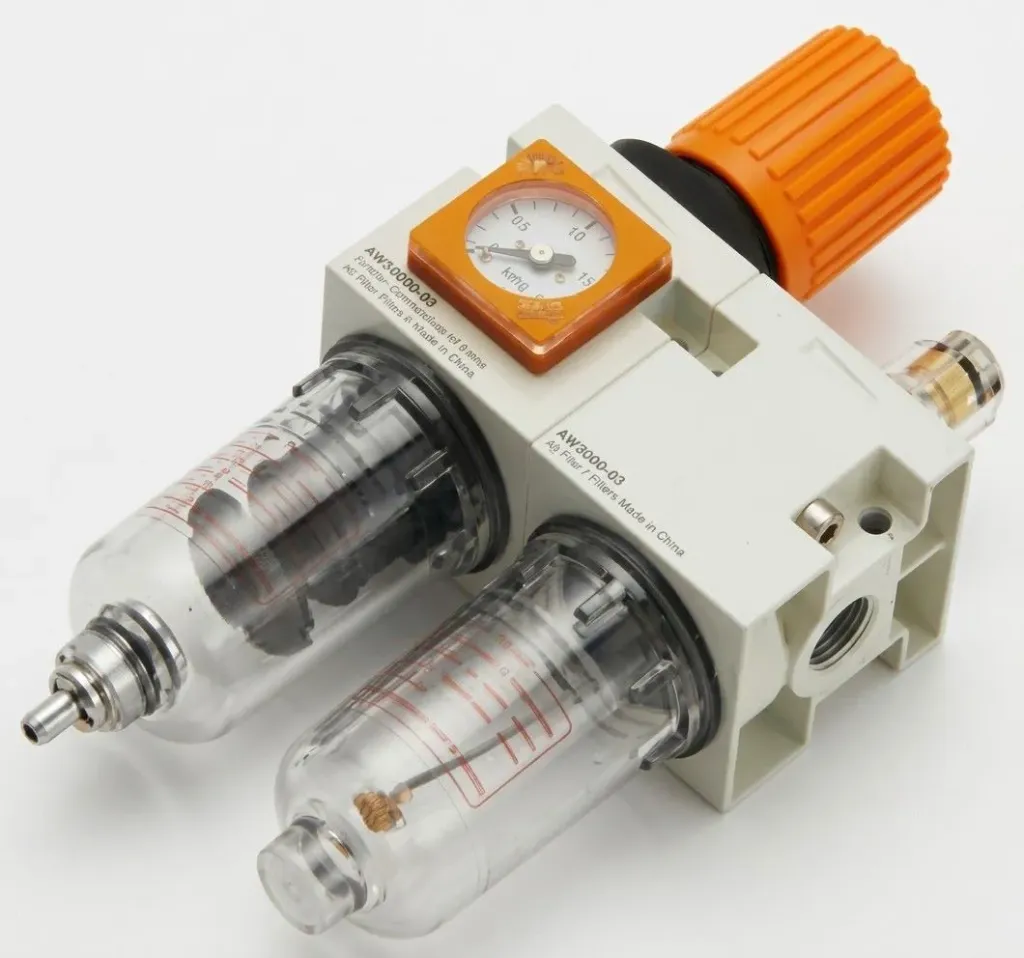

The AIRMIXS MU-MINI-20NX-1/4" Air Preparation Unit is a high-efficiency, space-saving 3-in-1 FRL assembly engineered for compact pneumatic control cabinets and space-constrained automation machinery. Connecting via G 1/4" ports, this modular unit combines three essential air treatment functions into one unified assembly: extracting moisture and particle debris, providing precise downstream pressure regulation, and injecting an oil fog to lubricate downstream pneumatic valves and actuators.
Engineered with a heavy-duty die-cast aluminum main housing and transparent polycarbonate bowls protected by steel guards, it provides clear visibility of condensate and oil levels. The regulator features a non-rising push-to-lock adjustment knob to prevent pressure drift caused by machine vibration, while the integrated micro-fog lubricator allows precise drip adjustment proportional to airflow.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | MU-MINI-20NX-1/4" |
Component Type | Mini FRL Combination Unit (Filter + Regulator + Lubricator) |
Port Size | G 1/4" (BSP) / NPT 1/4" |
Gauge Port Size | G 1/8" |
Filter Micron Rating | 5 µm (Standard) / 40 µm (Optional) |
Max Supply Pressure | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Pressure Regulation Range | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~1,100 – 1,300 L/min |
Drain Type | Manual / Semi-Automatic Drain |
Recommended Lubricant | ISO VG32 / Turbine No. 1 Oil |
Body Material | Die-Cast Aluminum Alloy |
Bowl Material | Polycarbonate with Protective Steel Guard |
Working Temperature Range | -5°C to +60°C (23°F to 140°F) |
Fluid Medium | Compressed Air |
