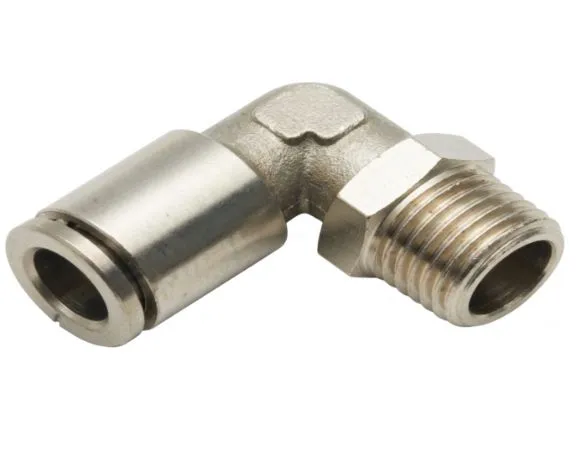

The MPL16-04 is a heavy-duty, large-capacity all-metal 90-degree male elbow push-in fitting engineered for high-flow industrial pneumatic systems. Made entirely from durable nickel-plated brass, it offers superior performance, maximum pressure stability, and high corrosion resistance compared to composite or plastic alternatives.
Featuring a 360-degree swivel configuration and a smooth metal push-to-connect sleeve, the MPL16-04 allows quick, tool-free tube insertion and seamless directional routing in tight or complex industrial layouts.
Specification | Technical Detail |
|---|
Model | MPL16-04 / MPL16-04G |
Fitting Type | 90° Swivel Male Elbow Push-in |
Tubing Outer Diameter (OD) | 16 mm |
Thread Connection | 1/2" Male Thread (BSPT / R Thread or NPT options) |
Body Material | Nickel-Plated Brass |
Release Sleeve Material | Metal (Nickel-Plated Brass) |
Internal Sealing | Nitrile Rubber (NBR) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 10 bar (0 to 145 PSI / 1.0 MPa) |
Operating Temperature | -10°C to +60°C (14°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
