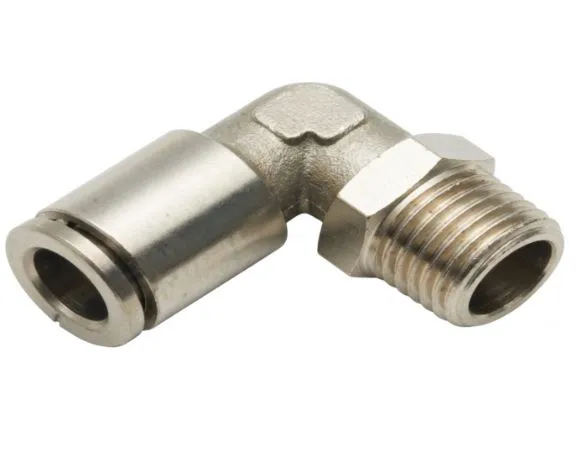

The MPL16-02 is a heavy-duty, all-metal 90-degree male elbow push-in fitting designed for high-capacity pneumatic lines requiring large-diameter tubing connections with a 1/4" port size. Constructed from full nickel-plated brass, it provides optimal resistance to chemical exposure, mechanical wear, and extreme operational conditions.
Featuring a 360-degree swivel body and an ergonomic metal release sleeve, the MPL16-02 facilitates fast, tool-free tube installations and flexible hose routing in dense industrial machinery.
Specification | Technical Detail |
|---|
Model | MPL16-02 / MPL16-02G |
Fitting Type | 90° Swivel Male Elbow Push-in |
Tubing Outer Diameter (OD) | 16 mm |
Thread Connection | 1/4" Male Thread (BSPT / R Thread or NPT options) |
Body Material | Nickel-Plated Brass |
Release Sleeve Material | Metal (Nickel-Plated Brass) |
Internal Sealing | Nitrile Rubber (NBR) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 10 bar (0 to 145 PSI / 1.0 MPa) |
Operating Temperature | -10°C to +60°C (14°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
