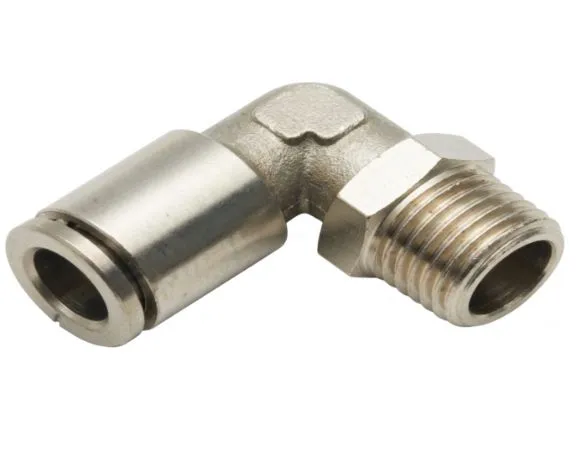

The MPL14-04 is a heavy-duty, all-metal 90-degree male elbow push-in fitting engineered for high-flow industrial pneumatic applications. Manufactured from full nickel-plated brass, it offers superior resistance to corrosion, mechanical stress, and harsh environmental conditions compared to standard plastic-composite fittings.
With its 360-degree swivel construction and one-touch release collet, the MPL14-04 ensures fast, tool-free tube insertion and easy directional alignment in tight machine layouts.
Specification | Technical Detail |
|---|
Model | MPL14-04 / MPL14-04G |
Fitting Type | 90° Swivel Male Elbow Push-in |
Tubing Outer Diameter (OD) | 14 mm |
Thread Connection | 1/2" Male Thread (BSPT / R Thread or NPT options) |
Body Material | Nickel-Plated Brass |
Release Sleeve Material | Metal (Nickel-Plated Brass) |
Internal Sealing | Nitrile Rubber (NBR) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 10 bar (0 to 145 PSI / 1.0 MPa) |
Operating Temperature | -10°C to +60°C (14°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
