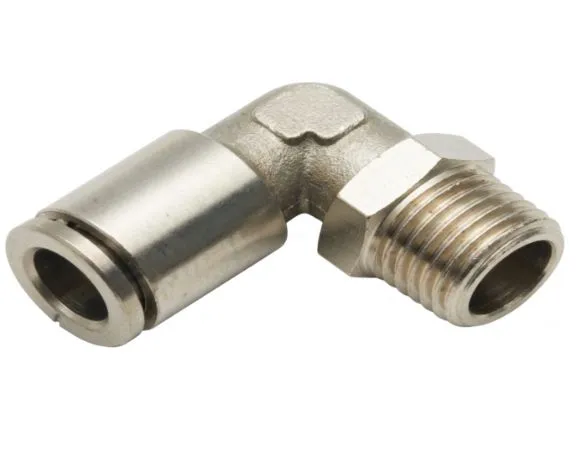

The MPL12-02 is a heavy-duty, all-metal 90-degree male elbow push-in fitting engineered for high-demand pneumatic, air-line, and industrial automation applications. Built with nickel-plated brass, it delivers superior chemical and mechanical resistance compared to standard plastic fittings, making it ideal for harsh operating conditions.
Featuring a 360-degree swivel body and a quick-release push-to-connect sleeve, the MPL12-02 enables seamless tubing installation and convenient directional alignment in tight spaces.
Specification | Technical Detail |
|---|
Model | MPL12-02 / MPL12-02G |
Fitting Type | 90° Swivel Male Elbow Push-in |
Tubing Outer Diameter (OD) | 12 mm |
Thread Connection | 1/4" Male Thread (BSPT / R Thread or NPT options) |
Body Material | Nickel-Plated Brass |
Release Sleeve Material | Metal (Nickel-Plated Brass) |
Internal Sealing | Nitrile Rubber (NBR) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 10 bar (0 to 145 PSI / 1.0 MPa) |
Operating Temperature | -10°C to +60°C (14°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
