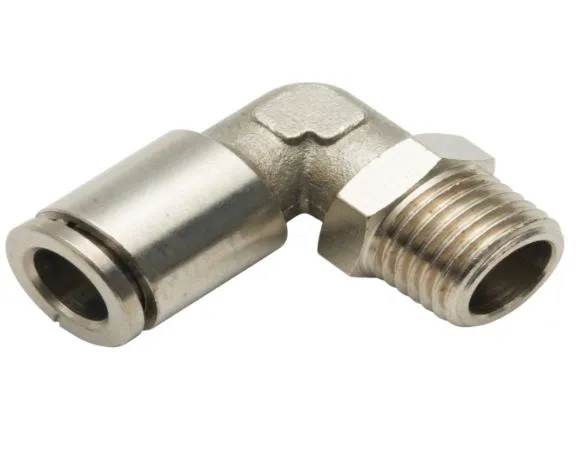

The MPL08-02 is an all-metal, push-in 90-degree male elbow connector designed for high-performance pneumatic systems and industrial automation. Constructed with nickel-plated brass, it provides excellent corrosion resistance and anti-contamination durability in demanding environments.
Featuring a tool-free one-touch release mechanism and a swivel design, this fitting allows easy 360-degree positioning during installation and maintenance in tight, confined spaces.
Specification | Technical Detail |
|---|
Model | MPL08-02 / MPL8-02 |
Fitting Type | 90° Swivel Male Elbow Push-in |
Tubing Outer Diameter (OD) | 8 mm |
Thread Connection | 1/4" Male (BSPT / R Thread or NPT options) |
Body Material | Nickel-Plated Brass / Metal |
Collet / Sleeve | Brass / Stainless Steel |
Sealing O-Ring | Nitrile (NBR) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 10 bar (0 to 145 PSI / 1.0 MPa) |
Operating Temperature | -10°C to +60°C (14°F to 140°F) |
Compatible Tubing Materials | Polyurethane (PU), Nylon, Polyethylene (PE) |
