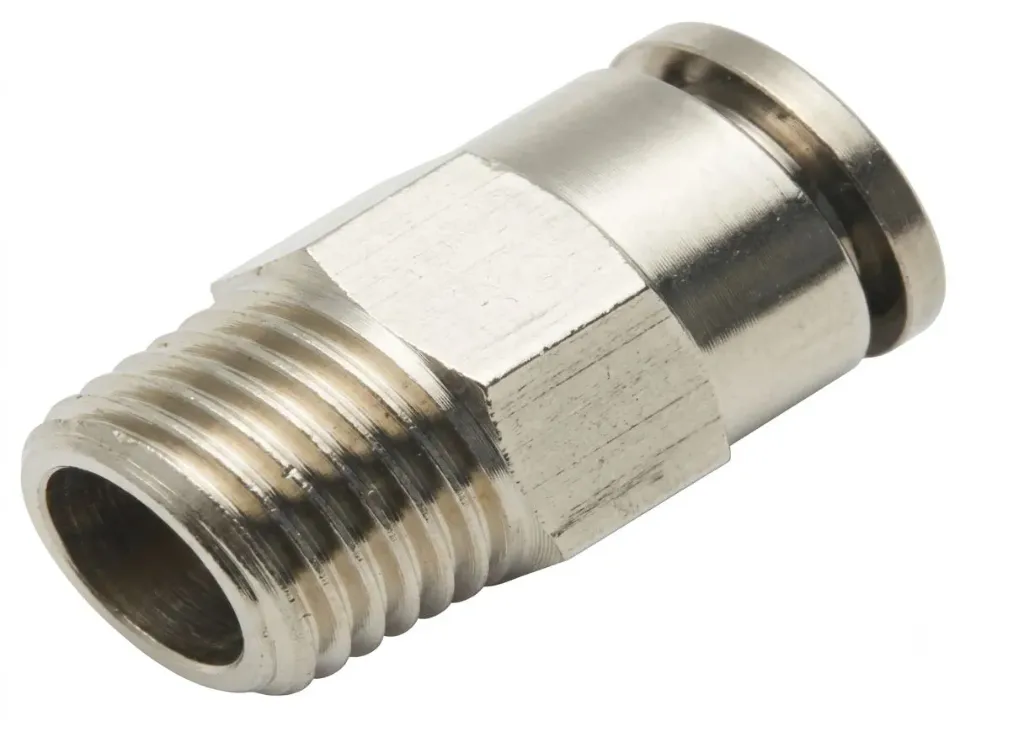

The MPC 16-02 Mini Male Straight Push-to-Connect Fitting is a heavy-duty, compact pneumatic connector designed to secure a large 16mm Outer Diameter (OD) tube directly to a 1/4" female thread port in a straight configuration.
engineered for space-restricted applications that demand extra-large air capacity, this Mini-series fitting provides maximum volumetric flow while maintaining a streamlined outer profile. It features an internal stainless steel lock claw for instant, tool-free tube insertion and high pull-out resistance, alongside pre-applied thread sealant on the male threads to ensure airtight performance in heavy-duty automated machinery, air supply manifolds, and industrial pneumatic systems.
Specification | Details |
|---|
Model / Part Number | MPC 16-02 (MPC-16-2 / MPC 16-1/4) |
Fitting Series | Compact / Mini Series Push-in Fitting |
Fitting Type | Male Straight Connector |
Tube OD (Size A) | 16 mm |
Thread Connection (Size B) | 1/4" Male (PT / NPT / BSPT / R 1/4) |
Compatible Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Fluid Media | Compressed Air, Vacuum |
Operating Pressure | 0 to 150 PSI (0 to 1.0 MPa / 10 bar) |
Proof Pressure | 435 PSI (3.0 MPa) |
Vacuum Pressure Rating | -29.5 in Hg (-100 kPa) |
Operating Temperature | 32°F to 140°F (0°C to 60°C) |
Body & Thread Material | Nickel-Plated Brass / Engineering Polymer |
Release Sleeve | Mini POM Plastic Collar |
Locking Mechanism | Stainless Steel (SUS) Gripping Claw |
Seal Element | NBR O-Ring & Pre-Coated Thread Sealant |
