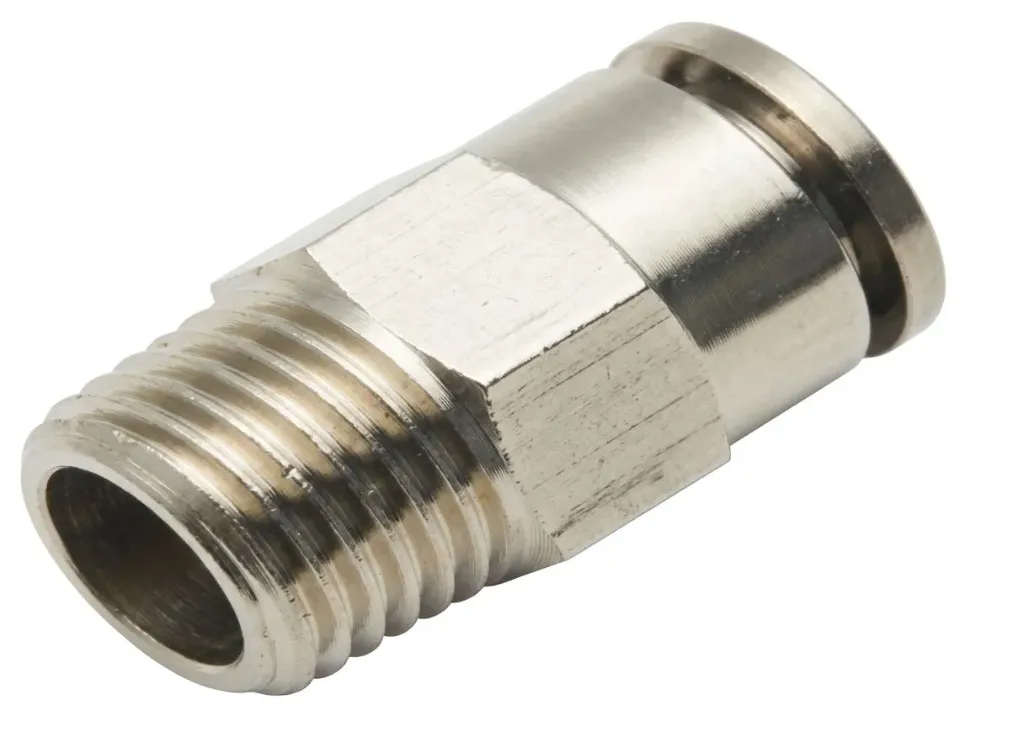

The MPC 10-04 Mini Male Straight Push-to-Connect Fitting is a high-capacity, compact pneumatic connector designed to secure a 10mm Outer Diameter (OD) tube into a 1/2" female thread port in a straight configuration.
engineered for space-critical pneumatic setups that demand large air volume, this Mini-series connector features a slim body profile to fit into tight manifold ports and tight control panels. It features a tool-free push-in mechanism backed by a stainless steel lock claw for firm tube retention, alongside pre-applied thread sealant on the male threads to ensure immediate, leak-free operation in robotics, factory automation, and heavy-duty air control circuits.
Specification | Details |
|---|
Model / Part Number | MPC 10-04 (MPC-10-4 / MPC 10-1/2) |
Fitting Series | Compact / Mini Series Push-in Fitting |
Fitting Type | Male Straight Connector |
Tube OD (Size A) | 10 mm |
Thread Connection (Size B) | 1/2" Male (PT / NPT / BSPT / R 1/2) |
Compatible Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Fluid Media | Compressed Air, Vacuum |
Operating Pressure | 0 to 150 PSI (0 to 1.0 MPa / 10 bar) |
Proof Pressure | 435 PSI (3.0 MPa) |
Vacuum Pressure Rating | -29.5 in Hg (-100 kPa) |
Operating Temperature | 32°F to 140°F (0°C to 60°C) |
Body & Thread Material | Nickel-Plated Brass / Engineering Polymer |
Release Sleeve | Mini POM Plastic Collar |
Locking Mechanism | Stainless Steel (SUS) Gripping Claw |
Seal Element | NBR O-Ring & Pre-Coated Thread Sealant |
