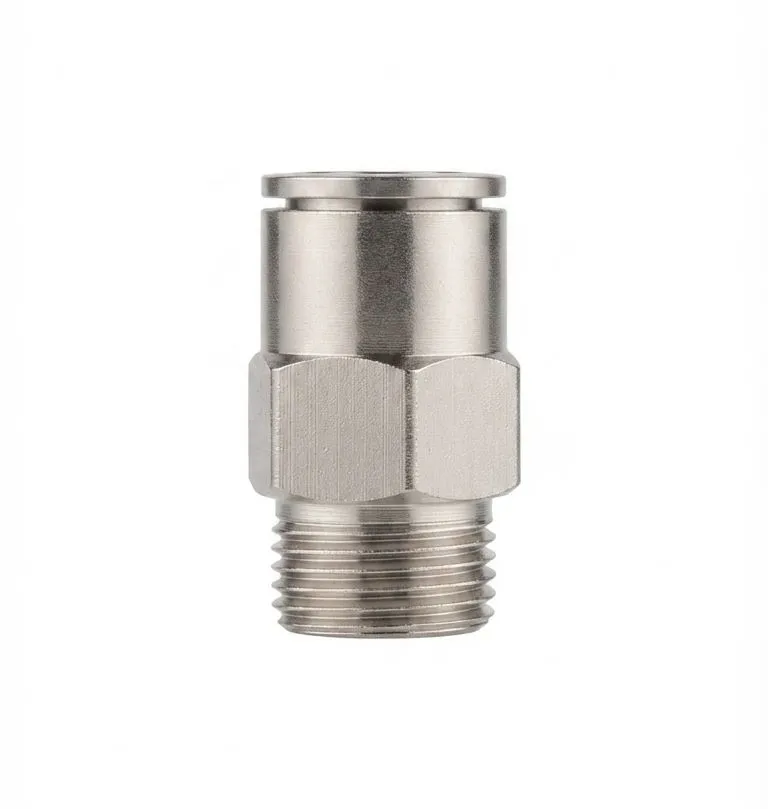

The AIRMIXS MPC 16-4 is a high-quality, straight male pneumatic fitting designed for push-to-connect systems. This fitting is used to securely connect pneumatic tubing to a threaded port, ensuring a leak-proof seal in industrial air systems.
The MPC 16-4 features a robust metal construction, making it ideal for environments where durability and resistance to vibration are required. Its simple push-to-connect design allows for quick, tool-free tubing installation and release.
Feature | Specification |
|---|
Model | MPC 16-4 |
Fitting Type | Straight Male Adapter (Push-to-Connect) |
Tube OD | 16mm |
Thread Size | 1/2" (Standard NPT or BSPT, verify local port) |
Body Material | Nickel-Plated Brass |
Fluid Type | Air, Vacuum |
Operating Pressure | 0–1.0 MPa (0–145 PSI) |
Operating Temp | -10°C to +80°C |
Seal Type | O-ring / Thread Sealant |
