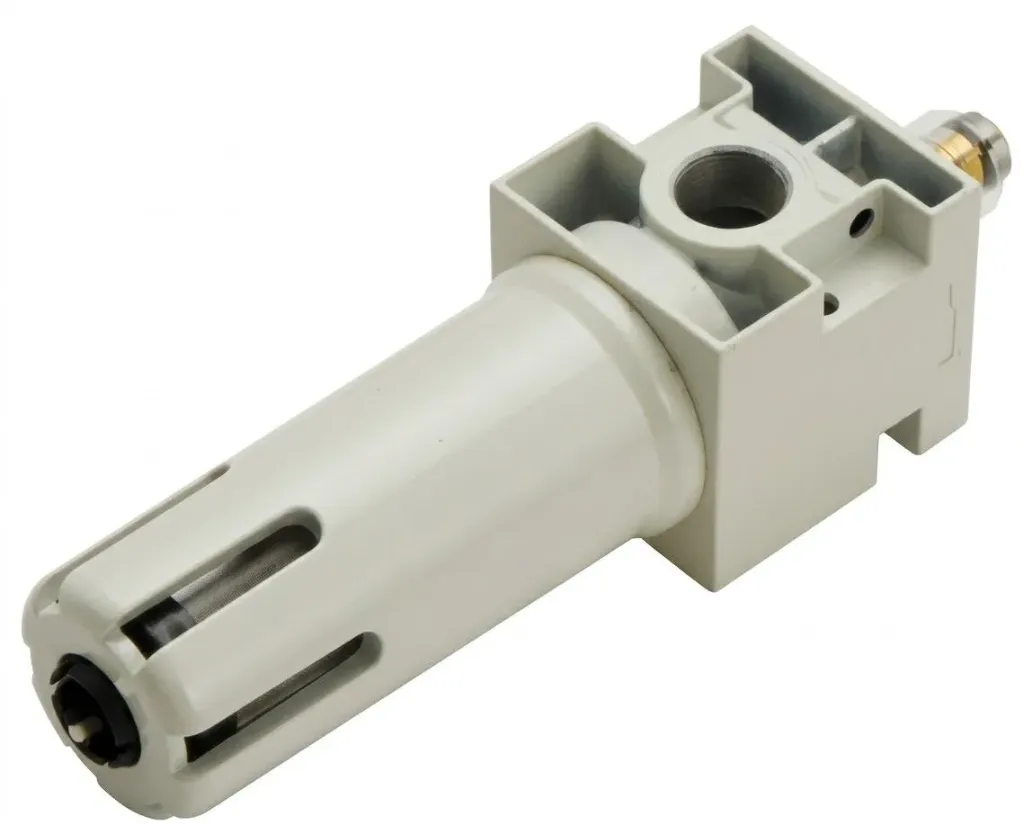

The AIRMIXS ML-MIDI-40N-3/8 is an industrial pneumatic proportional air lubricator designed to continuously meter and deliver fine oil mist into compressed air lines. Built in a standard MIDI body size with 3/8" port connections, it reduces internal friction and wear in downstream pneumatic cylinders, valves, and rotary tools, ensuring r
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | ML-MIDI-40N-3/8 |
Port Size | 3/8" NPT / G-Thread |
Body Size | MIDI (55 mm Grid Dimension) |
Lubricator Type | Proportional Oil Mist |
Operating Pressure Range | 0.5 bar – 12 bar (7.25 psi – 174 psi) |
Max. Operating Pressure | 16 bar (232 psi) |
Temperature Range | -5°C to +60°C |
Oil Bowl Capacity | 110 cm³ |
Recommended Oil | ISO VG32 or equivalent pneumatic tool oil |
Housing Material | Die-cast Zinc / Industrial Alloy |
Bowl Material | Polycarbonate with Protective Guard |
Compatible Media | Compressed Air |
