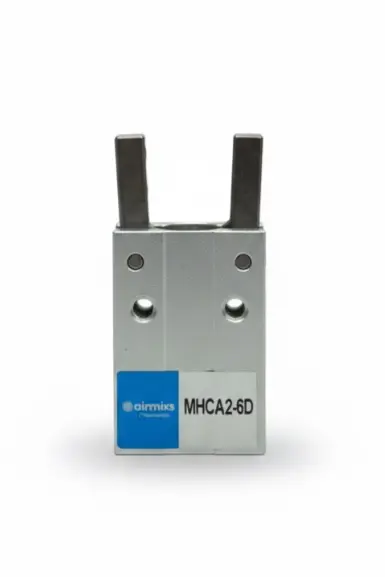

The MHCA2-6D is the ultra-compact choice for automated angular gripping. By utilizing a short body design, it reduces the overall footprint compared to standard grippers, making it ideal for high-density robotic assemblies and pick-and-place systems where every millimeter of space counts.
Feature | Specification |
|---|
Model | MHCA2-6D |
Bore Size | 6 mm |
Action Type | Double Acting |
Body Type | Short Body (41 mm length) |
Opening/Closing Angle | 30° to -10° |
Gripping Force (at 0.5 MPa) | 3.4 N |
Max. Operating Frequency | 180 c.p.m. |
Repeatability | $\pm 0.02$mm |
Operating Pressure Range | 0.15 to 0.6 MPa (22 to 87 PSI) |
Weight | Approx. 19 g |
Port Size | M3 x 0.5 |
