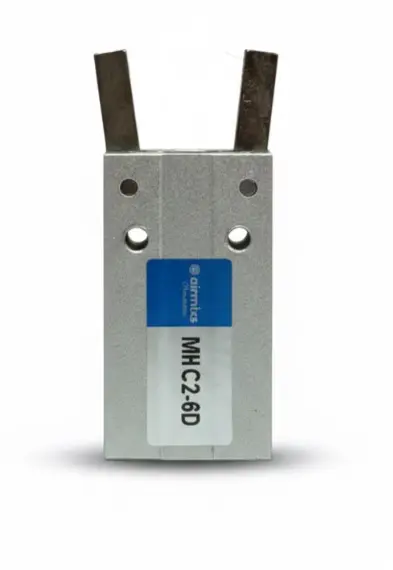

The MHC2-6D is an angular-style pneumatic gripper engineered for applications where space is limited but high reliability is required. Its unique Double Piston design ensures that it delivers significant gripping force relative to its miniature size.
Feature | Specification |
|---|
Model | MHC2-6D |
Bore Size | 6 mm |
Action Type | Double Acting |
Number of Fingers | 2 |
Opening/Closing Angle | 30° to -10° |
Operating Pressure | 0.15 to 0.6 MPa (21 to 87 PSI) |
Gripping Force | 3.4 N(at 0.5 MPa) |
Max Operating Frequency | 180 c.p.m. |
Repeatability | $\pm 0.02$mm |
Weight | Approx. 22 g |
Ambient Temperature | -10°C to 60°C |
