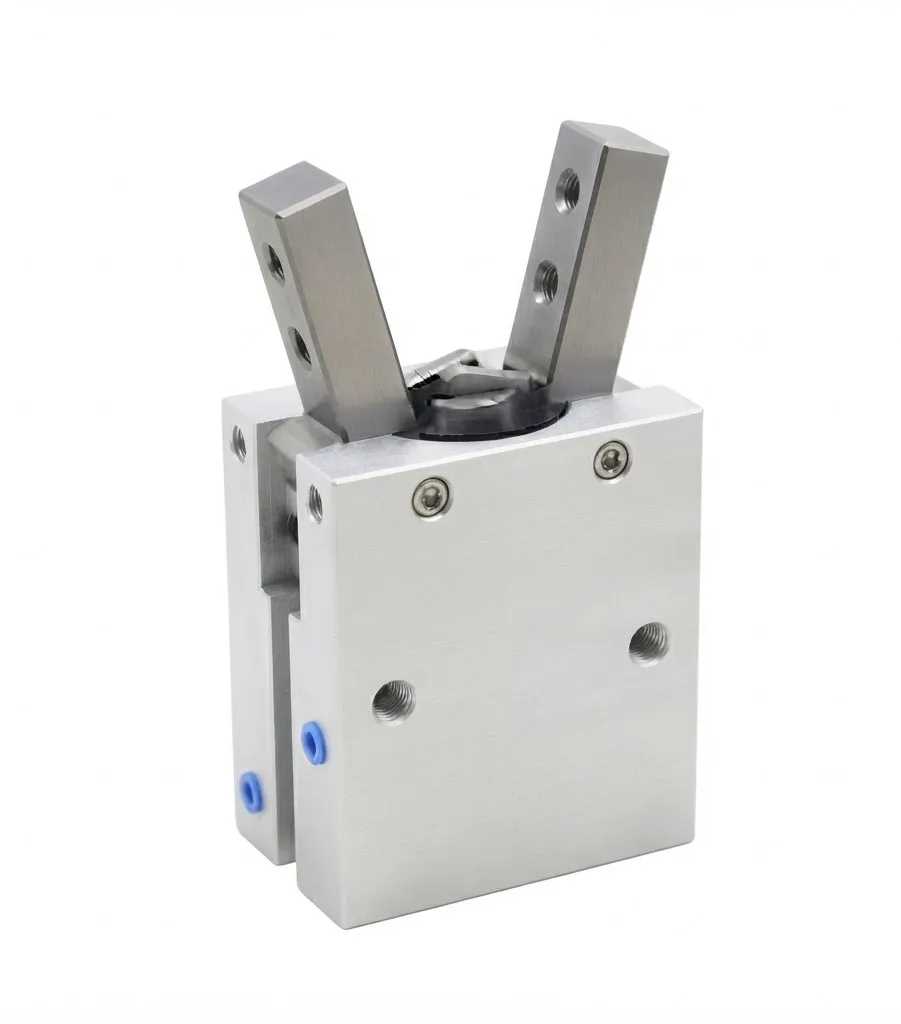

The AIRMIXS MHC2-16D is a high-precision 2-finger angular pneumatic air gripper engineered for reliable mechanical clamping, automated pick-and-place systems, and part transfer applications. Featuring a double-acting mechanism with a 16mm bore size, it generates higher gripping forces while maintaining a compact footprint. Built with an optimized pivot structure and integrated switch slots for position sensing, the MHC2-16D delivers smooth opening and closing cycles, precise positioning repeatability, and oil-free operation across industrial assembly line setups.
| Specification | Technical Detail |
|---|
Brand / Model | AIRMIXS MHC2-16D |
Component Type | Angular Air Gripper (2-Finger) |
Action Type | Double Acting |
Bore Size | 16 mm |
Operating Angle | -10° to +30° (Total Opening Angle: 40°) |
Port / Thread Size | M5 × 0.8 |
Working Medium | Compressed Air (40 µm filtered) |
Operating Pressure | 0.1 to 0.6 MPa (14.5 to 87 psi) |
Operating Temperature | -10°C to 60°C |
Repeatability | ±0.02 mm |
Lubrication | Not Required (Oil-Free) |
