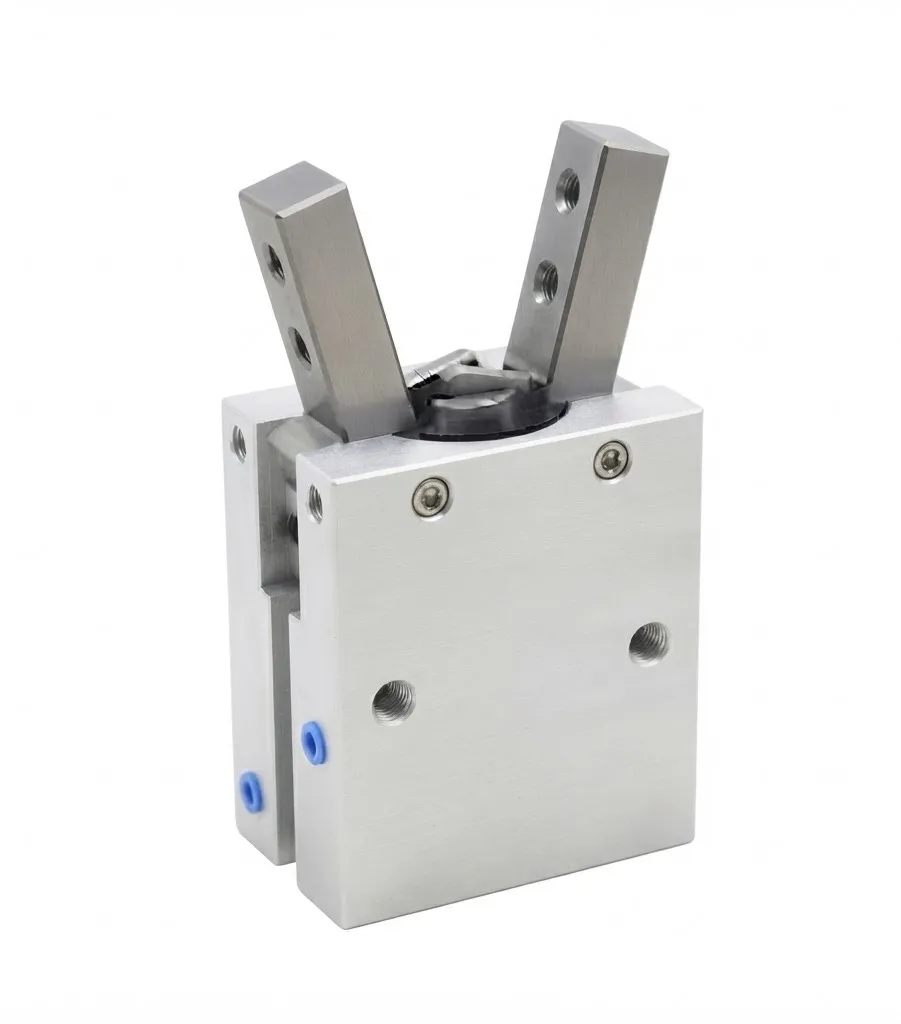

The AIRMIXS MHC2-10D is a compact 2-finger angular pneumatic air gripper designed for high-precision mechanical clamping, pick-and-place operations, and automated part handling. Featuring a double-acting mechanism with a 10mm bore, it delivers strong, consistent gripping force with an angular opening/closing motion. Built with integrated auto-switch mounting grooves and a high-precision pivot structure, the MHC2-10D ensures precise repeatability, smooth mechanical response, and maintenance-free, oil-free operation across light-duty industrial automation assembly lines.
| Specification | Technical Detail |
|---|
Brand / Model | AIRMIXS MHC2-10D |
Component Type | Angular Air Gripper (2-Finger) |
Action Type | Double Acting |
Bore Size | 10\text{ mm} |
Operating Angle | -10^\circ \text{ to } +30^\circ(Total Opening Angle: 40^\circ |
Port / Thread Size | M3 × 0.5 |
Working Medium | Compressed Air (40\,\mu\text{m}filtered) |
Operating Pressure | 0.1 \text{ to } 0.6\text{ MPa}(14.5 \text{ to } 87\text{ psi} |
Operating Temperature | 10^\circ\text{C} \text{ to } 60^\circ\text{C} |
Repeatability | \pm 0.02\text{ mm} |
Lubrication | Not Required (Oil-Free) |
