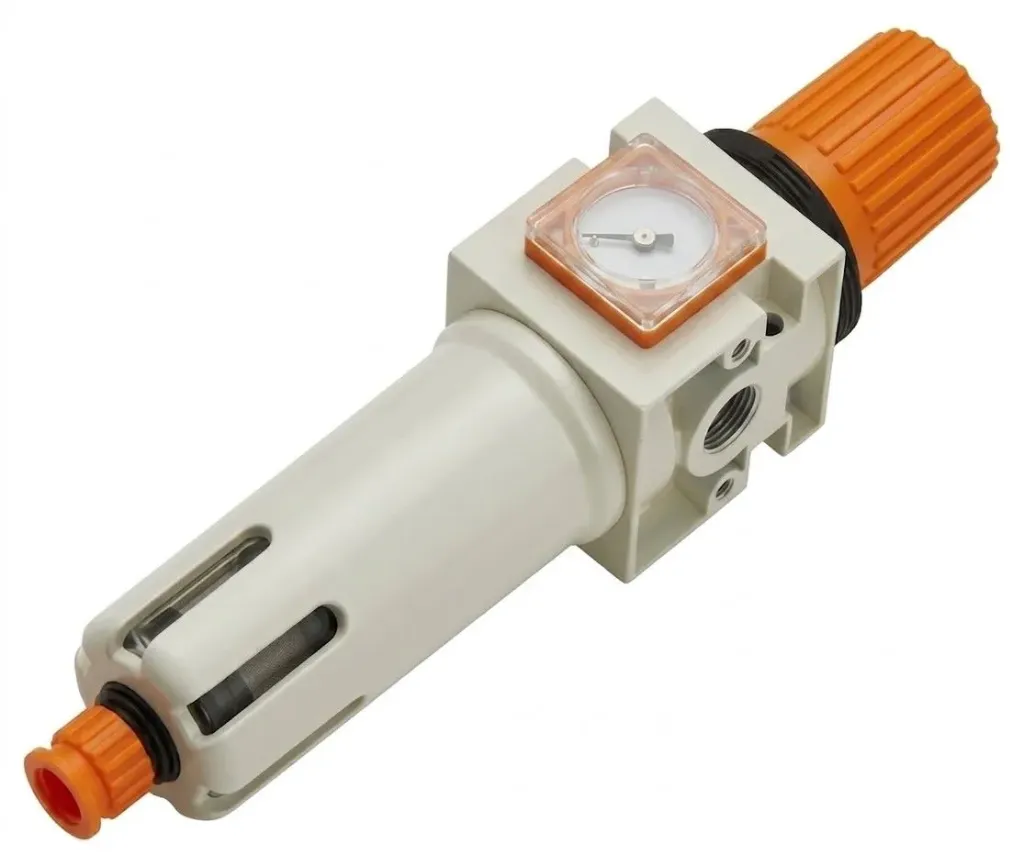

The AIRMIXS MFR-MINI-20NX-1/4 Mini Filter Regulator is a compact, high-performance air preparation unit engineered for precise pressure regulation and dual-stage moisture/particulate filtration in space-constrained industrial pneumatic systems. Featuring G 1/4" port connections, this space-saving unit cleans incoming compressed air while maintaining stable, constant downstream pressure for sensitive pneumatic tools, control valves, and automation circuits.
Equipped with a micro-porous filter element, it effectively traps dirt, scale, and condensed water droplets before they reach downstream components. The ergonomic top adjustment knob features a push-lock mechanism to prevent accidental pressure drift during high-vibration machine operation. Complete with an integrated pressure gauge and mounting bracket, it offers a complete, ready-to-install solution for compact machine frames and control cabinets.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | MFR-MINI-20NX-1/4 |
Component Type | Mini Filter Regulator (FR Unit) |
Port Size | G 1/4" (BSP) |
Gauge Port Size | G 1/8" |
Filter Micron Rating | 5 µm (Standard) / 40 µm (Optional) |
Max Supply Pressure | 10 Bar (approx. 145 PSI) |
Pressure Regulation Range | 0.5 – 8.5 Bar (7 – 123 PSI) |
Max Flow Rate | ~1,200 – 1,400 L/min |
Drain Type | Manual / Semi-Automatic Drain |
Bowl Material | Polycarbonate with Protective Steel Guard |
Working Temperature Range | -5°C to +60°C (23°F to 140°F) |
Fluid Compatibility | Compressed Air |
