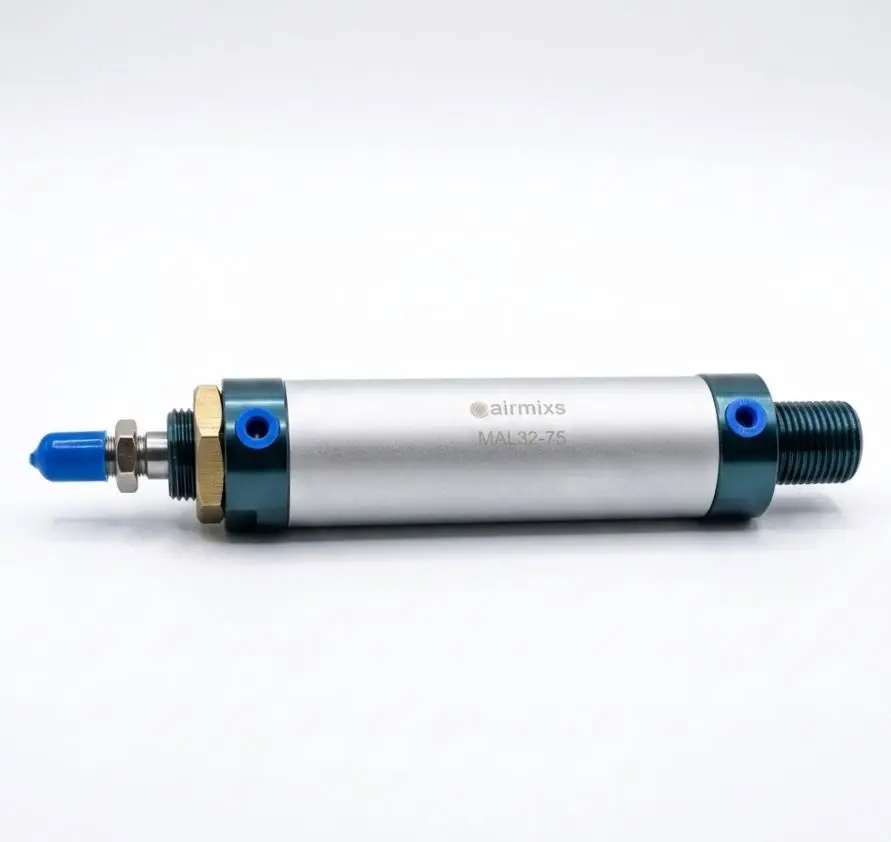

The AIRMIXS MAL32-75 is a high-strength mini round pneumatic cylinder designed for heavy-duty performance within a compact form factor. Featuring a 32mm bore, this model provides significantly higher force output than standard mini cylinders while maintaining the space-saving benefits of a round-body design.
Constructed with a hard-anodized aluminum alloy barrel and blue-anodized end caps, the MAL32-75 is built to withstand rigorous industrial environments. It is equipped with a precision-ground, hard chrome-plated piston rod to ensure smooth linear motion and a long service life in automation, material handling, and custom machinery builds.
Feature | Specification |
|---|
Model | MAL32-75 |
Bore Size | 32 mm |
Stroke Length | 75 mm |
Acting Type | Double Acting |
Fluid | Compressed Air (Filtered $\geq$40 $\mu$m) |
Operating Pressure | 0.1 – 0.9 MPa (14.5 – 130 psi) |
Proof Pressure | 1.35 MPa (195 psi) |
Temperature Range | -5°C to 70°C |
Speed Range | 30 – 800 mm/s |
Port Size | G 1/8" |
Cushioning | Rubber Bumper (Standard) |
