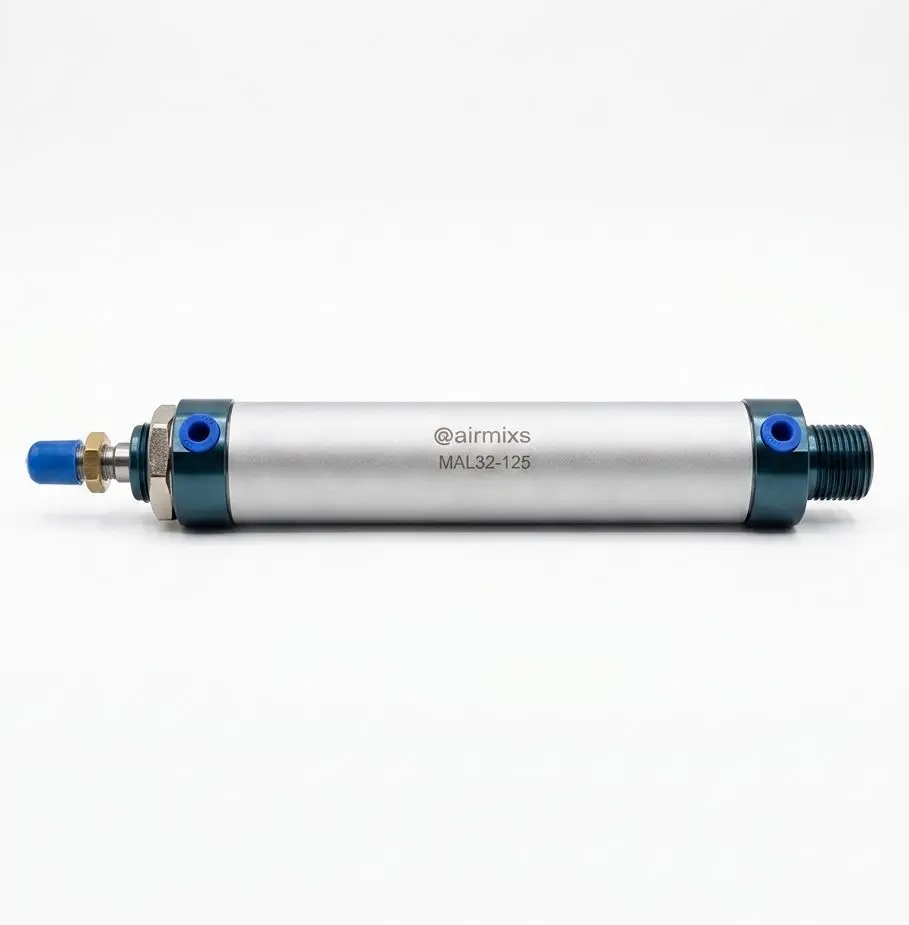

The AIRMIXS MAL32-125 is a high-performance mini round pneumatic cylinder engineered for heavy-duty automation in a compact form factor. Featuring a powerful 32mm bore and an extended 125mm stroke, this model provides superior pushing and pulling force compared to standard mini cylinders, making it ideal for more demanding linear motion tasks.
This cylinder is constructed with a hard-anodized aluminum alloy barrel and corrosion-resistant blue end caps, ensuring long-term durability in industrial environments. The precision-ground piston rod is designed for smooth, low-friction operation, which is critical for high-speed material handling and automated assembly processes.
Feature | Specification |
|---|
Model | MAL32-125 |
Bore Size | 32 mm |
Stroke Length | 125 mm |
Acting Type | Double Acting |
Fluid | Compressed Air (Filtered $\geq$40 $\mu$m) |
Operating Pressure | 0.1 – 0.9 MPa (14.5 – 130 psi) |
Proof Pressure | 1.35 MPa (195 psi) |
Temperature Range | -5°C to 70°C |
Operating Speed | 30 – 800 mm/s |
Port Size | G 1/8" |
Cushioning | Rubber Bumper (Standard) |
