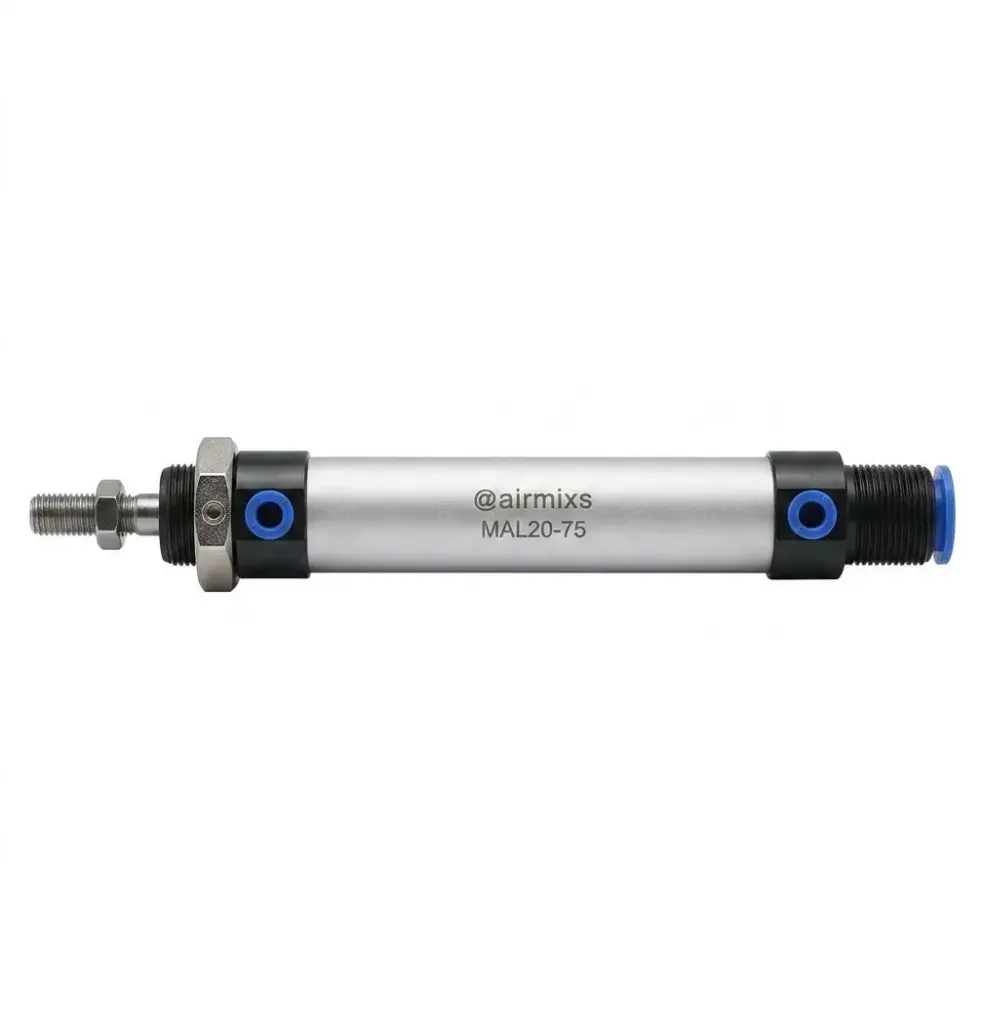

The AIRMIXS MAL20-75 is a high-quality mini round cylinder designed for precision and durability in compact pneumatic systems. Constructed with a high-strength aluminum alloy barrel, this double-acting cylinder offers excellent corrosion resistance and a lightweight profile, making it ideal for automation in the electronics, packaging, and medical industries.
This model features a 20mm bore and a 75mm stroke, providing reliable linear motion with integrated front and rear threaded covers for flexible mounting. The piston rod is precision-ground and polished to ensure low friction and a long service life, even in high-cycle applications.
Feature | Specification |
|---|
Model | MAL20-75 |
Bore Size | 20 mm |
Stroke Length | 75 mm |
Acting Type | Double Acting |
Fluid | Compressed Air (Filtered $\geq$40 $\mu$m) |
Operating Pressure | 0.1 – 0.9 MPa (14.5 – 130 psi) |
Proof Pressure | 1.35 MPa (195 psi) |
Temperature Range | -5°C to 70°C |
Operating Speed | 30 – 800 mm/s |
Port Size | G 1/8" (Standard) |
Cushioning | Rubber Bumper (Standard) |
