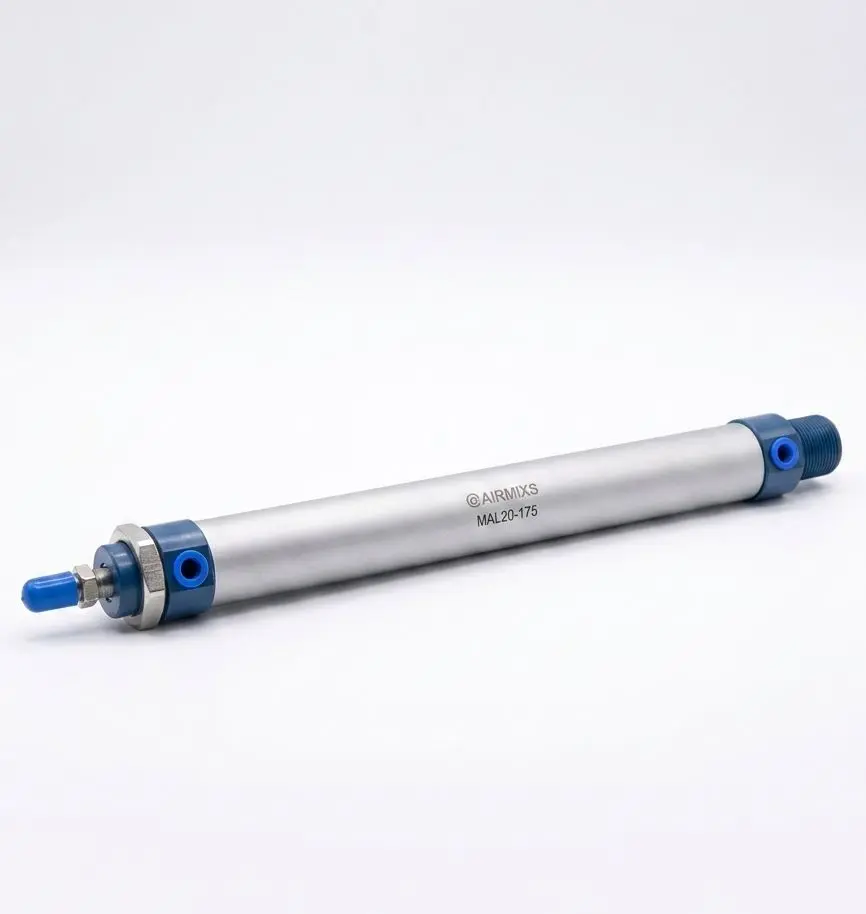

The AIRMIXS MAL20-175 is a precision-engineered mini round pneumatic cylinder designed for high-performance linear motion in streamlined automation setups. Featuring a durable, hard-anodized aluminum alloy barrel, this double-acting cylinder offers exceptional corrosion resistance and a lightweight design that reduces overall machine mass.
With a 20mm bore and an extended 175mm stroke, this model is specifically suited for applications requiring a longer reach, such as material sorting, long-distance ejection, or automated door mechanisms. The front and rear caps are securely threaded for versatile mounting, and the high-alloy steel piston rod is polished to ensure smooth, low-friction operation over millions of cycles.
Feature | Specification |
|---|
Model | MAL20-175 |
Bore Size | 20 mm |
Stroke Length | 175 mm |
Acting Type | Double Acting |
Fluid | Compressed Air (Filtered $\geq$40 $\mu$m) |
Operating Pressure | 0.1 – 0.9 MPa (14.5 – 130 psi) |
Proof Pressure | 1.35 MPa (195 psi) |
Temperature Range | -5°C to 70°C |
Speed Range | 30 – 800 mm/s |
Port Size | G 1/8" |
Cushioning | Rubber Bumper (Standard) |
