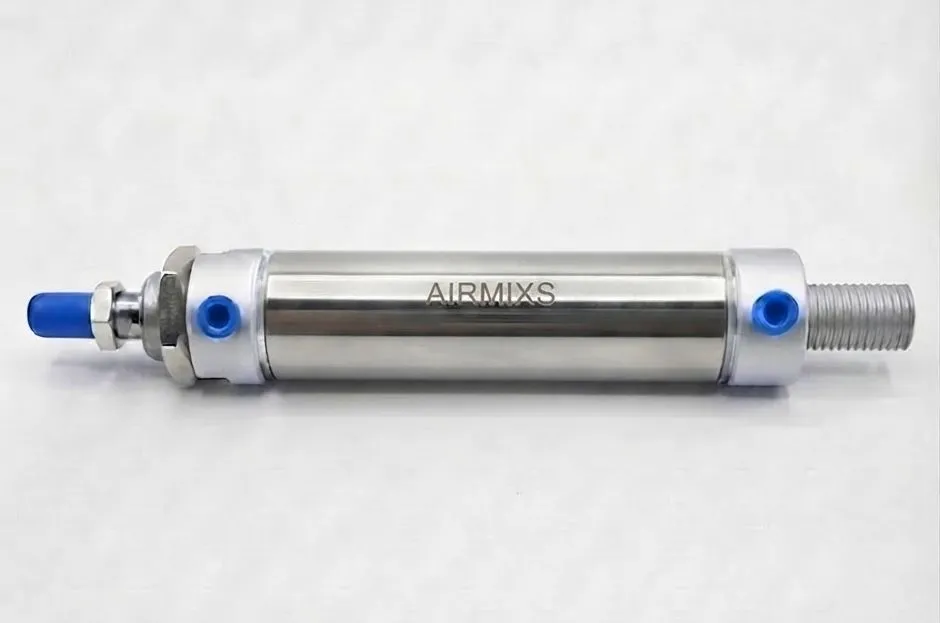

The AIRMIXS MA40-175-S is a compact, high-performance pneumatic miniature cylinder engineered for precision automation and fluid power applications. Designed for reliability and smooth operation, this standard stroke cylinder features robust construction, secure port connections, and an optimized profile suitable for constrained industrial spaces.
Specification | Details |
|---|
Brand Name | AIRMIXS |
Model / Part Number | MA40-175-S |
Bore Size | 40 mm |
Stroke Length | 175 mm |
Action Type | Double Acting (Standard) |
Operating Pressure Range | 0.1 to 1.0 MPa (1.0 to 10.0 bar) |
Fluid Type | Filtered Air (Lubricated or Non-lubricated) |
Port Size | G1/4 |
Operating Temperature | -20°C to 70°C |
