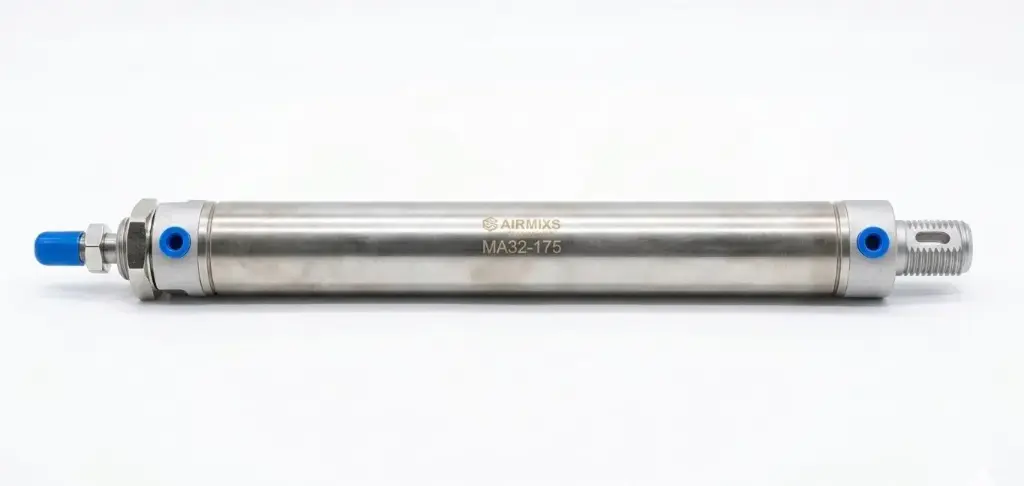

The AIRMIXS MA32-175 is a high-quality, double-acting mini cylinder designed for reliable performance in various industrial automation environments. This cylinder features a durable stainless steel barrel and a precision-engineered 175mm stroke, providing consistent linear motion for medium-reach applications.
Key Features:
Superior Durability: Constructed with a high-precision stainless steel body to withstand harsh working conditions and resist corrosion.
Sensor Ready: Includes an integrated magnetic ring on the piston as standard, allowing for seamless integration with position-sensing auto-switches.
Efficient Operation: Designed to operate within a wide pressure range of 0.1 to 0.9 MPa, ensuring versatility across different pneumatic systems.
Smooth Actuation: High-quality internal seals and precision manufacturing result in smooth piston travel and a long service life.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | MA32-175 |
Bore Size | 32 mm |
Stroke Length | 175 mm |
Acting Type | Double Acting |
Fluid | Air (filtered by 40μm filter element) |
Operating Pressure | 0.1 ~ 0.9 MPa |
Proof Pressure | 1.35 MPa |
Operating Temp. | -5°C to 70°C |
Magnet | Built-in (Standard for sensor compatibility) |
Body Material | High-precision Stainless Steel |
Port Size | 1/8" PT |
