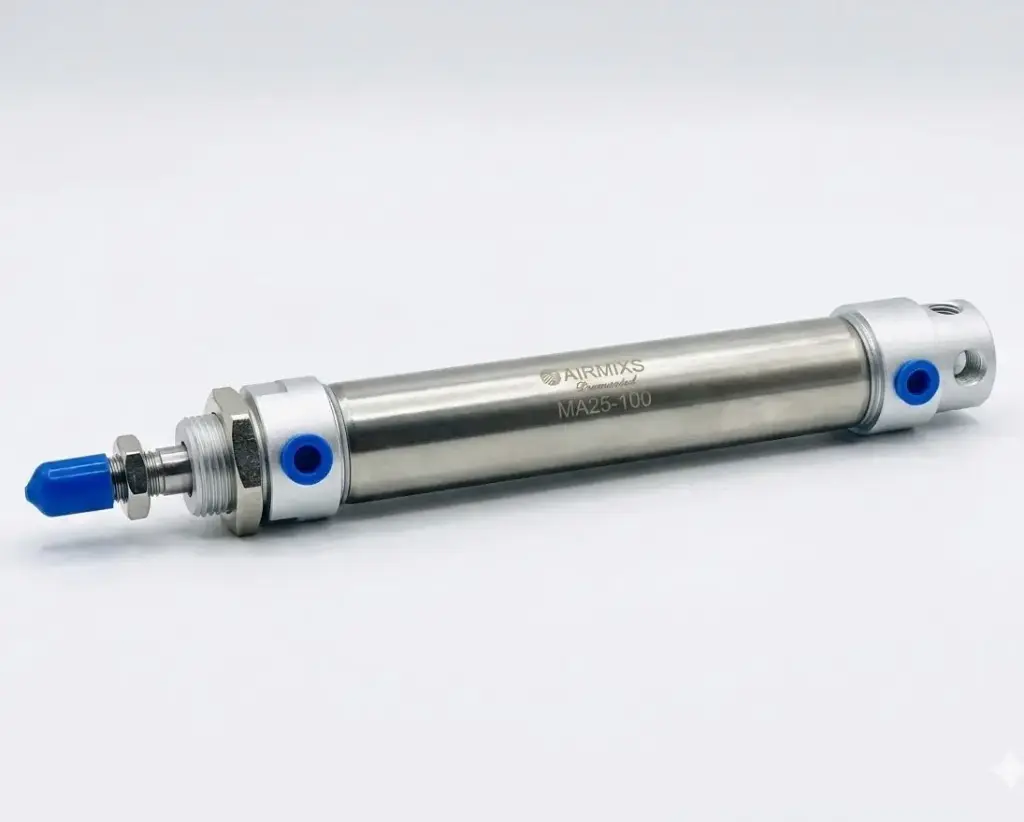

The MA25-100 is a double-acting mini pneumatic cylinder specifically designed for applications where space is limited but reliability is essential. It features a high-grade stainless steel barrel that provides exceptional resistance to corrosion and wear, even in demanding operating conditions.
The cylinder utilizes precision-machined aluminum alloy end caps and a high-strength piston rod to ensure smooth, low-friction strokes. Its double-acting mechanism allows for controlled power in both extension and retraction, while the integrated magnetic ring enables seamless position sensing with external magnetic switches. This model is ideal for medical devices, electronic component assembly, and small-scale packaging machinery.
Feature | Specification |
|---|
Model | MA25-100 |
Bore Size | 25 mm |
Stroke Length | 100 mm |
Acting Type | Double Acting |
Material Type | Stainless Steel Barrel / Aluminum Alloy Ends |
Working Medium | Filtered Compressed Air |
Operating Pressure | 0.1 ~ 0.9 MPa (14 ~ 130 PSI) |
Proof Pressure | 1.35 MPa (195 PSI) |
Operating Temp. | -5°C to 70°C |
Speed Range | 50 ~ 800 mm/s |
Port Size | G 1/8" |
Magnetism | Magnetic (Standard) |
