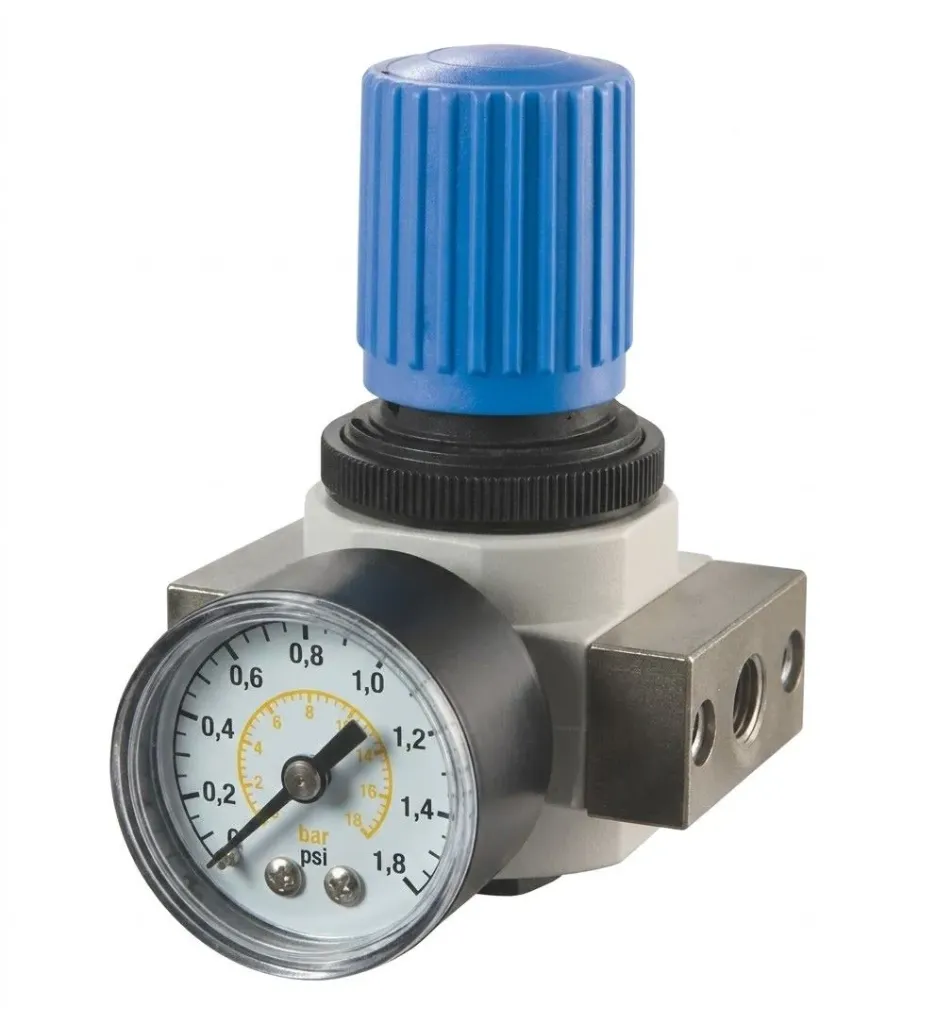

The AIRMIXS LR-3/8-MINI is a compact, directly actuated diaphragm pressure regulator engineered to maintain precise and constant downstream air pressure despite fluctuating primary pressure. Designed with a MINI grid footprint and 3/8" port connections, this pressure regulating valve features a locking rotary knob to protect against accidental pressure drift, ensuring continuous stability and reliable operation across automated pneumatic systems.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | LR-3/8-MINI |
Port Size | 3/8" NPT / G-Thread |
Body Size | MINI (40 mm Grid Dimension) |
Regulator Type | Directly Controlled Diaphragm Regulator with Secondary Exhausting |
Pressure Regulation Range | 0.5 bar – 12 bar (7.25 psi – 174 psi) |
Max. Operating Pressure | 16 bar (232 psi) |
Standard Nominal Flow Rate | 1,700 L/min |
Temperature Range | -10°C to +60°C |
Actuator Lock | Rotary Knob with Detent |
Compatible Media | Compressed Air, Neutral Industrial Gases |
