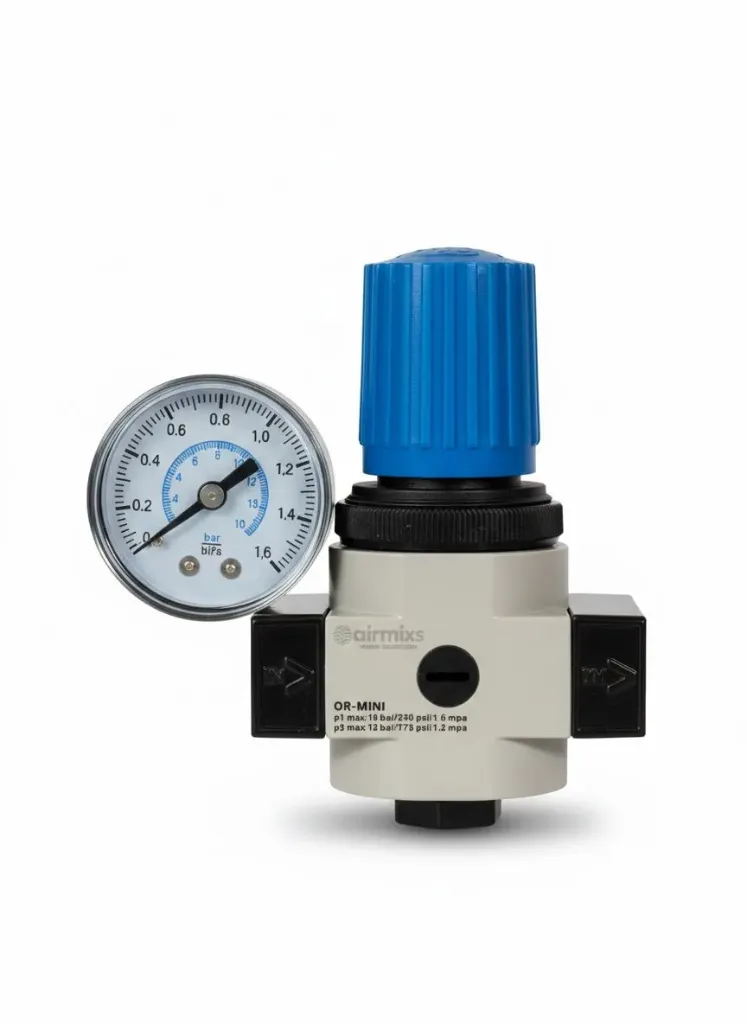

The AIRMIXS LR-1/4-MINI (cataloged under the modular series OR-MINI) is an industrial-grade pneumatic pressure regulator designed for the precise management of compressed air. This unit is essential for protecting downstream components from pressure surges and ensuring that pneumatic actuators operate with consistent force and speed.
Part of the AIRMIXS MINI Modular Series, the LR-1/4-MINI features a compensated diaphragm design that provides exceptional stability even under high flow rates. The ergonomic blue "Push-to-Lock" adjustment knob allows operators to set the pressure quickly and securely, preventing unauthorized or accidental changes caused by machinery vibration. Its rugged zinc die-cast construction ensures a long service life in demanding factory environments.
Feature | Specification |
|---|
Model | LR-1/4-MINI (OR-MINI) |
Brand | AIRMIXS |
Port Size | G 1/4" |
Regulator Type | Diaphragm with Secondary Exhaust (Relieving) |
Max. Inlet Pressure ($p_1$) | 1.6 MPa (16 bar / 232 PSI) |
Outlet Pressure Range ($p_2$) | 0.05 – 1.2 MPa (0.5 – 12 bar) |
Standard Nominal Flow Rate | 1,200 L/min |
Pressure Gauge Port | G 1/8" |
Operating Temperature | -10°C to 60°C |
Construction Materials | Zinc Die-cast Body, NBR Seals, POM Adjustment Knob |
Mounting Type | Inline, Wall Bracket, or Panel Mounting |
