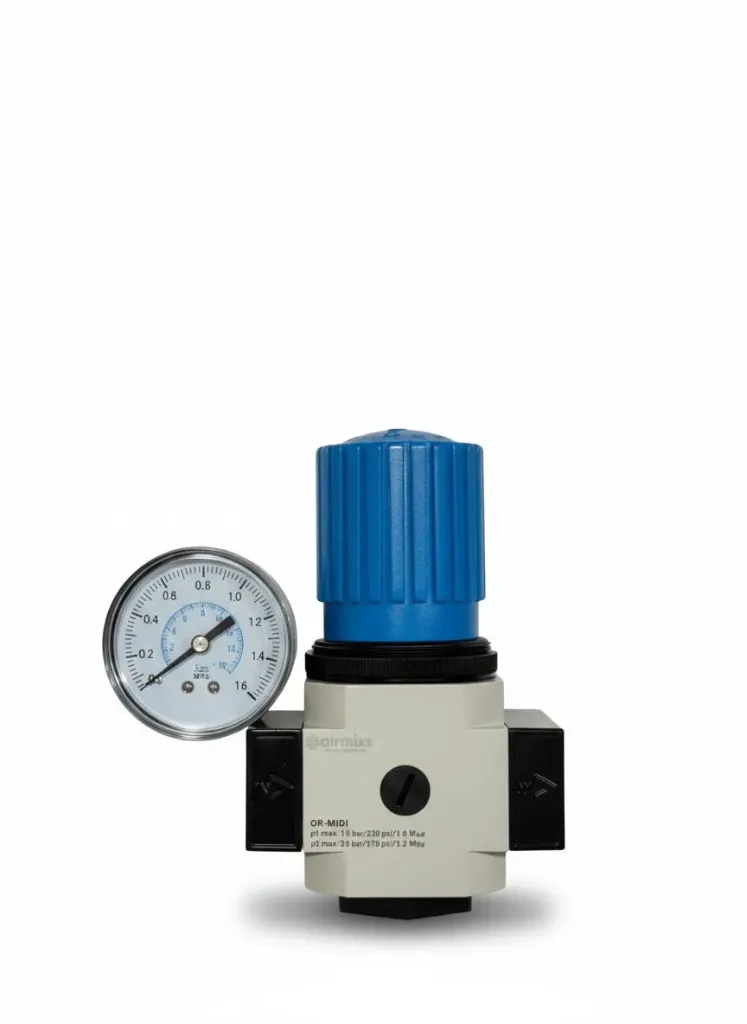

The AIRMIXS LR-1/2-MIDI (part of the OR-MIDI modular series) is a robust, high-capacity pneumatic pressure regulator designed for primary air supply control in industrial environments. Engineered for the "MIDI" size class, this regulator provides significantly higher flow rates than smaller units, making it ideal for large-bore cylinders, air-hungry tools, and complex automation manifolds.
This unit features a compensated diaphragm design, ensuring that the secondary (output) pressure remains exceptionally stable even when the primary air supply fluctuates or during high-demand surges. The oversized blue "Push-to-Lock" adjustment knob provides precise control and a secure locking mechanism to prevent pressure drift caused by machinery vibrations.
Feature | Specification |
|---|
Model | LR-1/2-MIDI (OR-MIDI) |
Brand | AIRMIXS |
Port Size | G 1/2" |
Regulator Type | Diaphragm with Secondary Exhaust (Relieving) |
Max. Inlet Pressure ($p_1$) | 1.6 MPa (16 bar / 232 PSI) |
Outlet Pressure Range ($p_2$) | 0.05 – 1.2 MPa (0.5 – 12 bar) |
Nominal Flow Rate | 3,500 L/min |
Pressure Gauge Port | G 1/4" |
Operating Temperature | -10°C to 60°C |
Construction | Die-cast Zinc Body / NBR Seals / POM Knob |
Mounting Orientation | Any (Vertical Preferred) |
