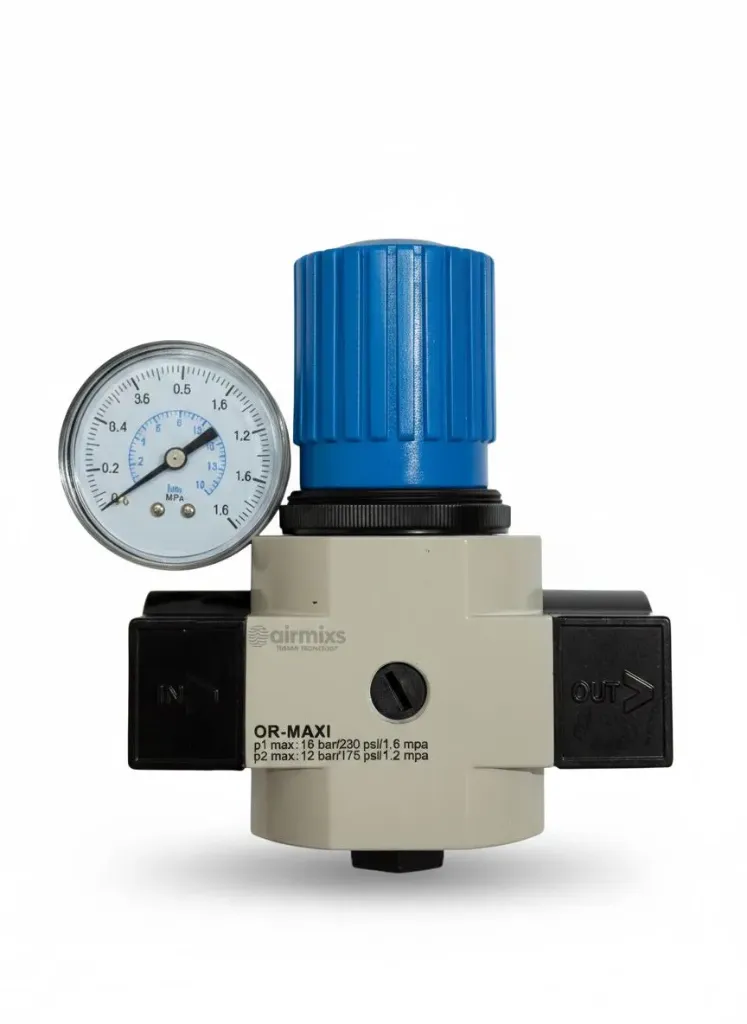

The AIRMIXS LR-1-MAXI (also identified by modular code OR-MAXI) is the heavy-duty powerhouse of the AIRMIXS regulator family. Specifically engineered for high-flow industrial applications, this 1" port regulator is designed to handle massive air volumes while maintaining a precise and stable output pressure. It is the ideal choice for main air line headers, large-scale pneumatic machinery, and high-demand factory sectors.
The LR-1-MAXI features a high-sensitivity compensated diaphragm system, ensuring that your secondary pressure remains rock-solid even during sudden surges in airflow or primary supply fluctuations. With its robust zinc die-cast construction and the signature blue "Push-to-Lock" security knob, this regulator combines extreme durability with effortless, accurate adjustment.
Feature | Specification |
|---|
Model | LR-1-MAXI (OR-MAXI) |
Brand | AIRMIXS |
Port Size | G 1" |
Regulator Type | Diaphragm with Secondary Exhaust (Relieving) |
Max. Inlet Pressure ($p_1$) | 1.6 MPa (16 bar / 232 PSI) |
Outlet Pressure Range ($p_2$) | 0.05 – 1.2 MPa (0.5 – 12 bar) |
Nominal Flow Rate | 11,500 L/min |
Pressure Gauge Port | G 1/4" |
Operating Temperature | -10°C to 60°C |
Body Material | Reinforced Zinc Die-cast |
Seals / Diaphragm | Nitrile Rubber (NBR) |
