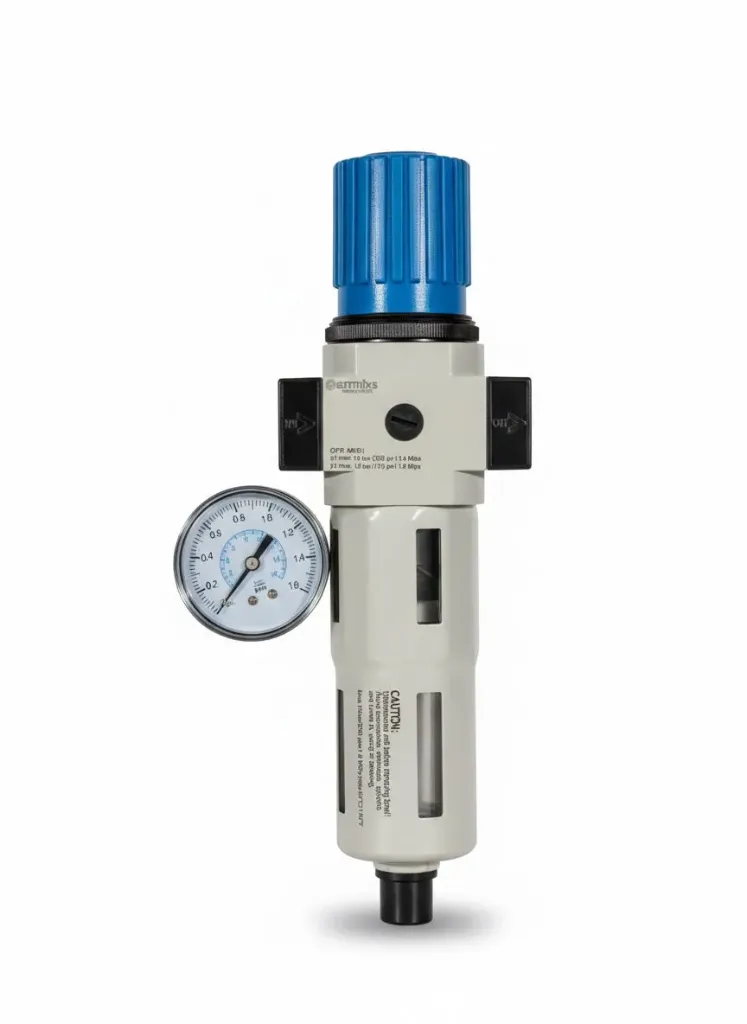

The AIRMIXS LFR-3/4-MIDI is a high-efficiency integrated pneumatic unit that combines the functions of a precision air filter and a pressure regulator into a single modular body. Designed for larger-scale industrial air lines with 3/4" G-thread connections, this MIDI-series component is essential for removing moisture and contaminants while providing stable air pressure to downstream equipment.
Constructed with a rugged die-cast zinc body and a high-strength polycarbonate bowl, the LFR-3/4-MIDI features a compensated diaphragm regulator that maintains consistent output pressure even during high-flow demand. The unit includes a reinforced steel bowl guard for added safety and the signature blue "Push-to-Lock" knob to prevent accidental pressure adjustments in high-vibration factory environments.
Feature | Specification |
|---|
Model | LFR-3/4-MIDI (OFR-MIDI) |
Brand | AIRMIXS |
Port Size | G 3/4" |
Filtration Grade | 40 $\mu$m(Sintered Bronze Element) |
Regulator Type | Diaphragm with Secondary Exhaust (Relieving) |
Max. Inlet Pressure ($p_1$) | 1.6 MPa (16 bar / 232 PSI) |
Outlet Pressure Range ($p_2$) | 0.05 – 1.2 MPa (0.5 – 12 bar) |
Nominal Flow Rate | 3,500 L/min |
Bowl Protection | Polycarbonate with Steel Protective Guard |
Drain Type | Manual / Semi-Automatic |
Operating Temp. | -10°C to 60°C |
Pressure Gauge | Included (Dual Scale: bar/PSI) |
