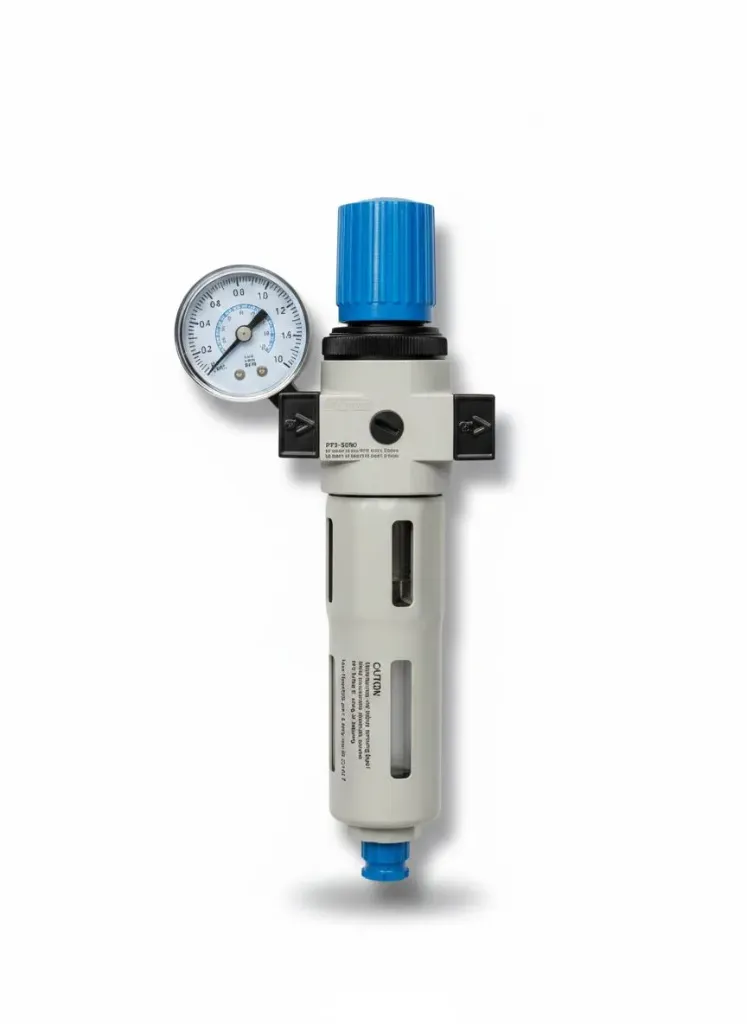

The AIRMIXS LFR-1/8-MINI (modular code OFR-MINI) is a professional-grade 2-in-1 air preparation component that integrates a high-efficiency particulate filter with a precision pressure regulator. This unit is specifically designed for space-constrained industrial environments where high-quality compressed air is essential for protecting downstream sensitive pneumatic valves and actuators.
The LFR-1/8-MINI utilizes a centrifugal water separation system to remove liquid moisture and a 40-micron sintered element to trap solid debris. The integrated regulator ensures a constant set pressure despite fluctuations in the main supply. For durability and safety, the unit is equipped with a high-strength polycarbonate bowl encased in a reinforced steel bowl guard, and it features the signature AIRMIXS blue "Push-to-Lock" knob to prevent accidental pressure drift.
Feature | Specification |
|---|
Model | LFR-1/8-MINI (OFR-MINI) |
Brand | AIRMIXS |
Port Size | G 1/8" |
Filter Element | 40 $\mu$m(Sintered Bronze) |
Regulator Type | Diaphragm with Secondary Exhaust (Relieving) |
Max. Inlet Pressure ($p_1$) | 1.6 MPa (16 bar / 232 PSI) |
Outlet Pressure Range ($p_2$) | 0.05 – 1.2 MPa (0.5 – 12 bar) |
Standard Nominal Flow | 800 – 1,000 L/min |
Bowl Protection | Polycarbonate with Steel Protective Guard |
Drain Type | Manual / Semi-Automatic |
Operating Temperature | -10°C to 60°C |
Pressure Gauge | Included (Dual Scale: bar/PSI) |
