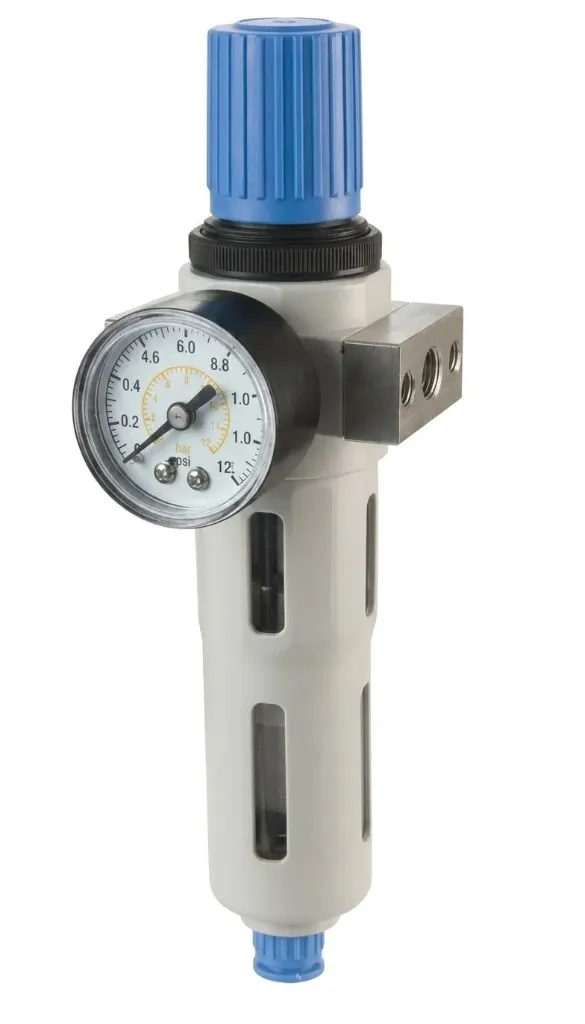

The AIRMIXS LFR-1/2-MIDI is an industrial filter regulator unit designed to perform both high-capacity particulate filtration and stable pressure regulation in a single modular component. Featuring a robust MIDI footprint with 1/2" port connections, it removes water condensate, oil mists, and dirt particles down to 40 µm while maintaining accurate downstream pressure. Equipped with a lockable rotary knob and a heavy-duty guarded bowl, it ensures reliable protection for pneumatic tools, valves, and automated control systems.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | LFR-1/2-MIDI |
Port Size | 1/2" NPT / G-Thread |
Body Size | MIDI (55 mm Grid Dimension) |
Filter Rating | 40 µm (Standard) |
Regulator Type | Diaphragm Regulator with Secondary Exhausting |
Pressure Regulation Range | 0.5 bar – 12 bar (7.25 psi – 174 psi) |
Max. Operating Pressure | 16 bar (232 psi) |
Standard Nominal Flow Rate | 3,400 L/min |
Temperature Range | -10°C to +60°C |
Drain Type | Manual / Semi-Automatic Drain |
Actuator Lock | Rotary Knob with Lock Ring |
Bowl Guard | Polycarbonate Bowl with Protective Metal Guard |
Compatible Media | Compressed Air, Neutral Industrial Gases |
