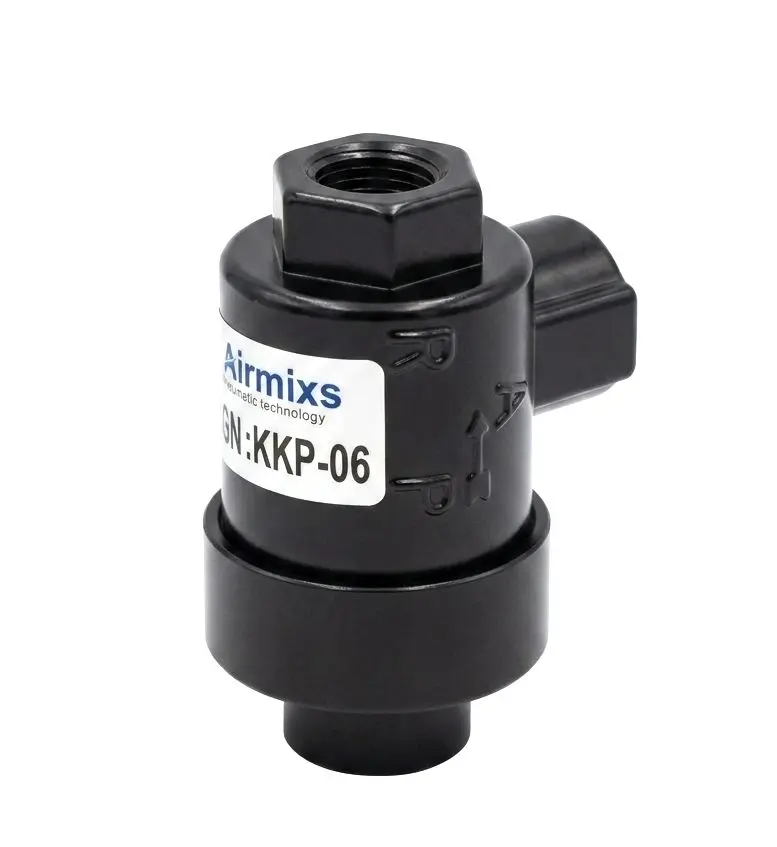

The AIRMIXS KKP-06 is a high-performance quick exhaust valve designed to significantly increase the operating speed of pneumatic cylinders. By providing a direct path for exhaust air to escape to the atmosphere right at the cylinder port, it bypasses the restrictive path through the main directional control valve. This reduction in backpressure allows for rapid piston movement and shorter cycle times.
Constructed with a durable aluminum alloy body and high-quality internal seals, the KKP-06 is engineered for long-term reliability in fast-paced industrial automation. Its compact design and G1/8" threading make it an ideal choice for space-constrained pneumatic circuits requiring high-speed actuation.
Feature | Specification |
|---|
Model | KKP-06 |
Function | Quick Exhaust (Rapid Escape) |
Port Size | 1/8" G (PT/NPT options often available) |
Body Material | Aluminum Alloy |
Working Medium | Compressed Air (Filtered to 40μm) |
Operating Pressure | 0.05 to 1.2 MPa (7 to 174 psi) |
Guaranteed Pressure | 1.5 MPa (215 psi) |
Temperature Range | -5°C to +60°C (up to 105°C for high-temp variants) |
Sectional Area (P→A) | 10 mm² |
Sectional Area (A→R) | 20 mm² (High-speed exhaust path) |
Installation Position | Near the cylinder port for maximum efficiency |
