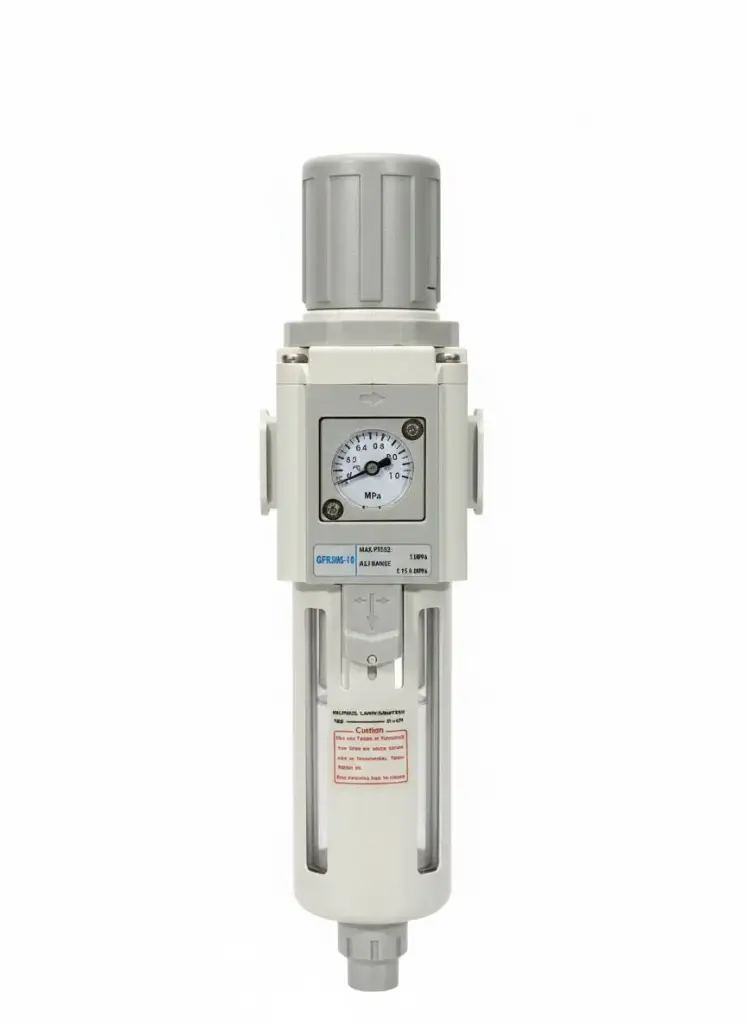

The AIRMIXS GFR300-10 is a high-performance, space-saving air treatment component that combines a pneumatic filter and a pressure regulator into a single modular unit. It is designed to remove moisture and solid contaminants from compressed air lines while maintaining a precise and stable output pressure for downstream equipment.
This model features a balanced pressure adjustment mechanism to ensure minimal drift and an embedded square pressure gauge to save installation space. Its unique diversion structure spins the incoming air to effectively separate liquids from the gas stream.
Feature | Specification |
|---|
Model | GFR300-10 |
Working Medium | Filtered Compressed Air |
Port Size | 3/8" (PT / G / NPT) |
Filtration Grade | 40 $\mu$m or 5 $\mu$m (Optional) |
Pressure Range | 0.15 ~ 0.9 MPa (20 ~ 130 PSI) |
Max. Operating Pressure | 1.0 MPa (145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Temperature Range | -5°C to 70°C (Unfreeze) |
Drain Bowl Capacity | 60 CC |
Body Material | Aluminum Alloy |
Drain Type | Semi-Auto (Standard) / Manual / Automatic |
