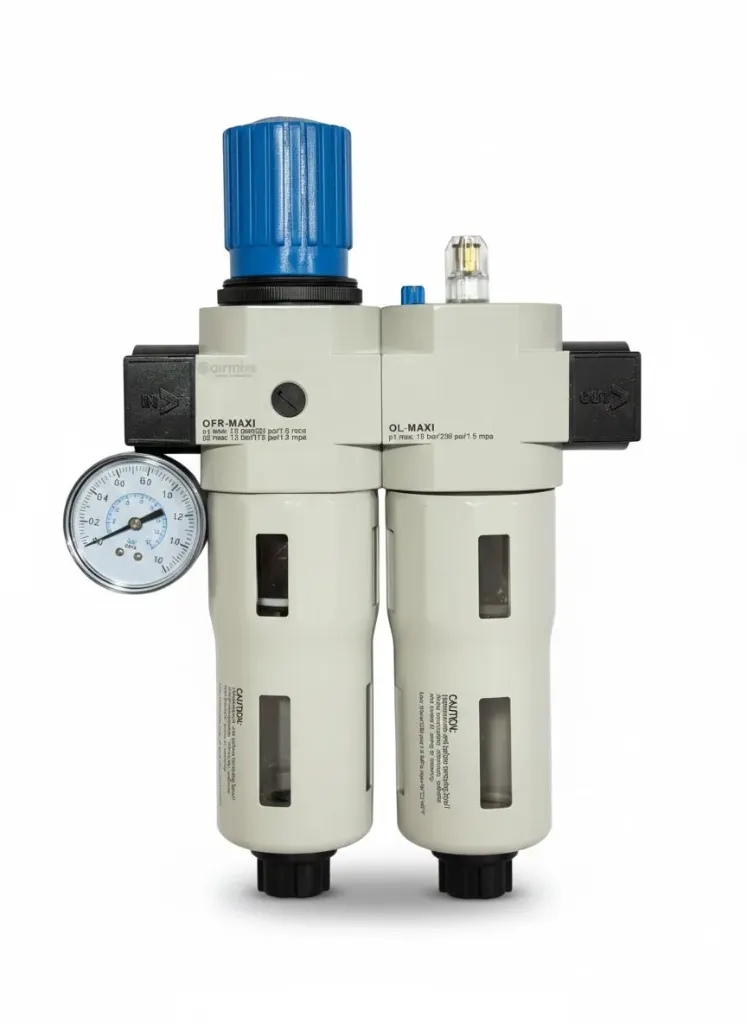

The AIRMIXS FRC-1-MAXI is a heavy-duty, integrated air preparation system designed for high-volume industrial environments. Combining a high-efficiency filter-regulator (OFR) and a proportional oil mist lubricator (OL) into a single modular block, this unit ensures your main air lines deliver clean, dry, and lubricated air to large-scale pneumatic systems.
With its 1" G-thread ports, the MAXI series is engineered for maximum throughput, supporting large-bore cylinders and high-demand air tools without significant pressure loss. The unit features dual high-visibility polycarbonate bowls protected by rugged metal guards, a precision pressure gauge, and the signature AIRMIXS blue "Push-to-Lock" knob for secure pressure management.
Feature | Specification |
|---|
Model | FRC-1-MAXI |
Brand | AIRMIXS |
Port Size | G 1" |
Components | Filter-Regulator (OFR-MAXI) + Lubricator (OL-MAXI) |
Filtration Grade | 40 $\mu$m(Sintered Bronze Element) |
Pressure Range | 0.05 – 1.2 MPa (0.5 – 12 bar) |
Max. Inlet Pressure | 1.6 MPa (16 bar / 232 PSI) |
Max. Flow Rate | 11,000 L/min |
Bowl Protection | Polycarbonate with Steel Protective Guards |
Drain Type | Manual / Semi-Automatic (Auto-drain optional) |
Temperature Range | -10°C to 60°C |
Pressure Gauge | Included (Dual Scale: bar/PSI) |
