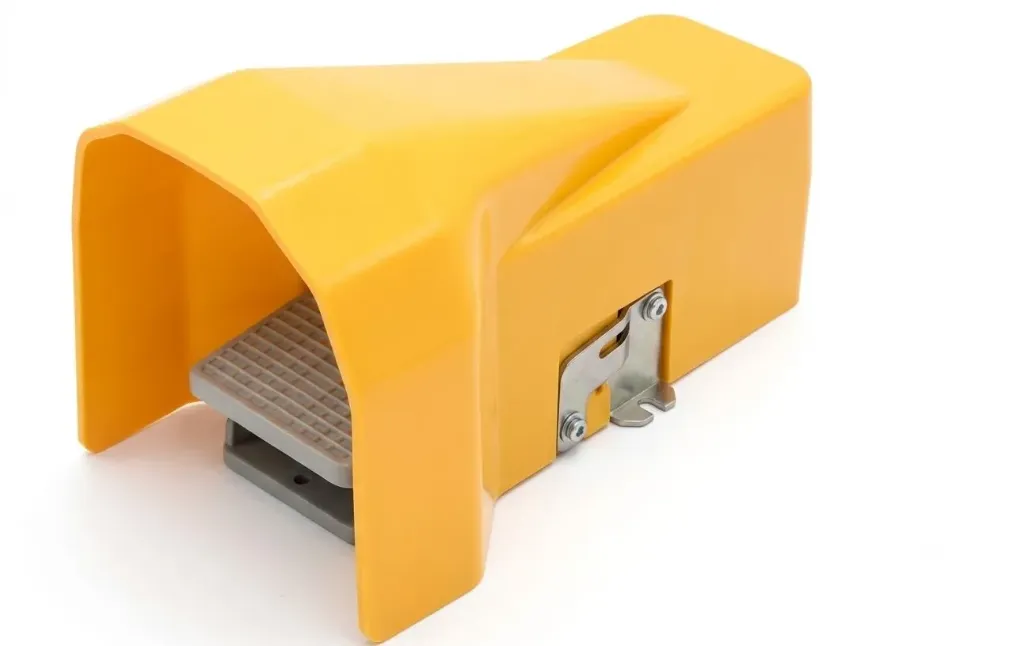

The AIRMIXS FA522C-08L is an industrial 5/2-way latching (maintained action) foot pedal valve designed for hands-free control of pneumatic cylinders and automation systems. Unlike standard spring-return pedals, the "L" version features a latching mechanism: stepping on the pedal locks the valve in position, and stepping on it a second time releases it back to the home position. Enclosed in a high-visibility yellow protective safety guard to prevent accidental actuation, it features 1/4" threaded ports for direct connection to double-acting cylinders.
Feature / Specification | Detail |
|---|
Model Code | FA522C-08L (FA522C-08-L / 5/2 Way Latching) |
Valve Type | 5-Port / 2-Position (5/2 Way) Directional Spool Valve |
Actuation Method | Foot Pedal Operated with Latching (Push-Lock / Push-Release) |
Port Thread Size | 1/4" NPT / G (BSP) Ports |
Operating Media | Compressed Air (Filtered to 40 µm) |
Operating Pressure | 0.15 to 0.8 MPa (1.5 – 8.0 bar / 22 – 116 PSI) |
Proof Pressure | 1.2 MPa (12 bar / 174 PSI) |
Temperature Range | -5°C to +60°C (+23°F to +140°F) |
Body / Guard Material | Die-Cast Aluminum Body with Protective Safety Guard Frame |
Lubrication | Not Required (Pre-lubricated internal spool) |
