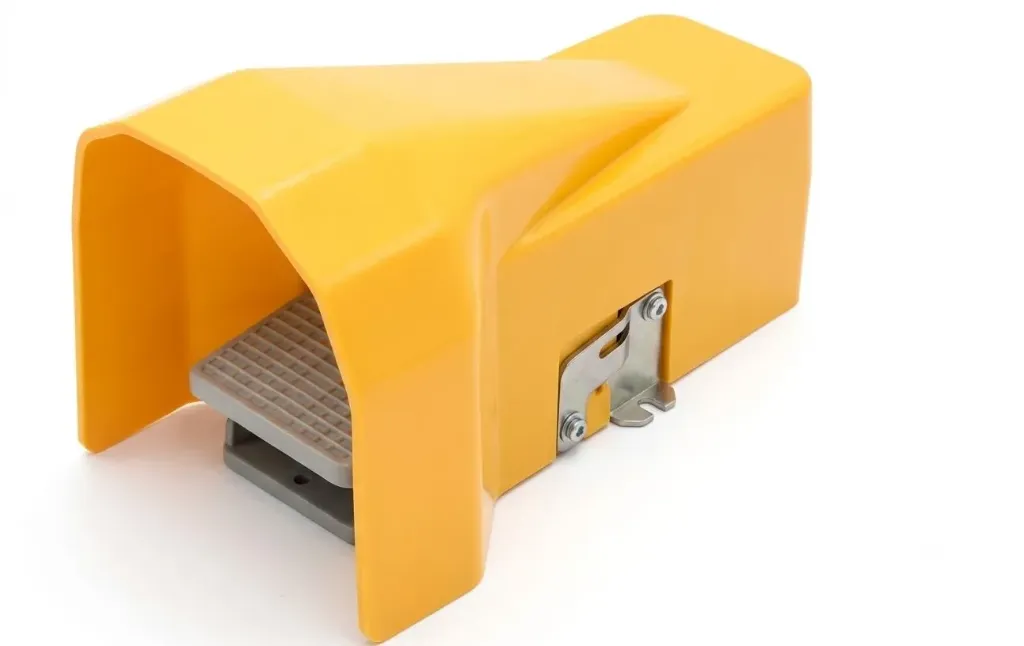

The AIRMIXS FA522C-08 is an industrial-grade, 5/2-way directional foot pedal valve designed for hands-free control of pneumatic cylinders and actuators. Housed inside a heavy-duty, high-impact yellow protective guard frame, it prevents accidental foot actuation on busy shop floors. Featuring standard 1/4" threaded ports and a smooth internal spool valve mechanism, it allows machinery operators to actuate, extend, retract, or cycle double-acting pneumatic equipment effortlessly while keeping both hands free to align workpieces.
Feature / Specification | Detail |
|---|
Model Code | FA522C-08 (FA522C-08-5/2 / F522C-08) |
Valve Type | 5-Port / 2-Position (5/2 Way) Directional Spool Valve |
Actuation Method | Foot Pedal Operated with Safety Protective Cover |
Port Thread Size | 1/4" NPT / G (BSP) Ports |
Operating Media | Compressed Air (Filtered to 40 µm) |
Operating Pressure | 0.15 to 0.8 MPa (1.5 – 8.0 bar / 22 – 116 PSI) |
Proof Pressure | 1.2 MPa (12 bar / 174 PSI) |
Temperature Range | -5°C to +60°C (+23°F to +140°F) |
Body / Guard Material | Die-Cast Aluminum Body with Heavy-Duty Protective Guard |
Lubrication | Not Required (Pre-lubricated) |
