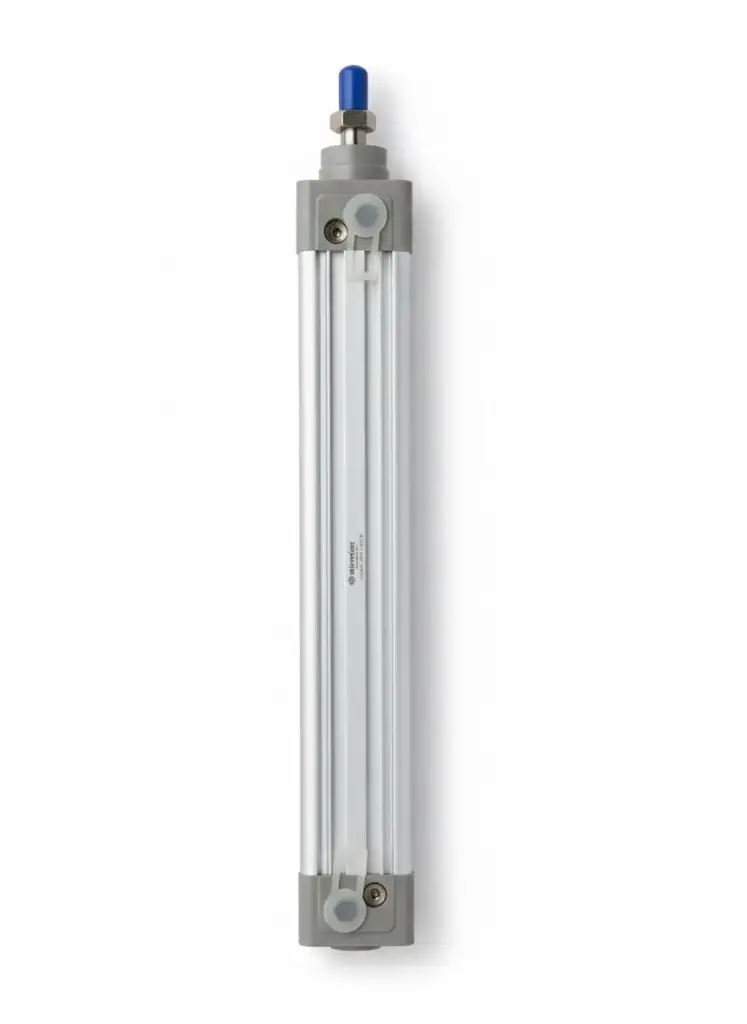

The AIRMIXS DSBC32-200-PPV-A is a high-performance, double-acting pneumatic cylinder built to the ISO 15552 standard. Designed for precision and durability in industrial automation, it features a robust profile barrel with integrated sensor slots and adjustable pneumatic cushioning at both ends (PPV).
Feature | Specification |
|---|
Bore Size (Piston Diameter) | 32 mm |
Stroke Length | 200 mm |
Standard | ISO 15552 (Standardized dimensions) |
Cushioning Type | PPV: Pneumatic cushioning, adjustable at both ends |
Design | Profile barrel with integrated sensor slots |
Operation Mode | Double-acting |
Piston Rod Thread | M10 x 1.25 |
Pneumatic Port Size | G1/8 |
Operating Pressure | 0.6 bar to 12 bar |
Temperature Range | -20°C to +80°C |
Material (Barrel) | Anodized Aluminum |
Material (Piston Rod) | High-alloy Steel |
