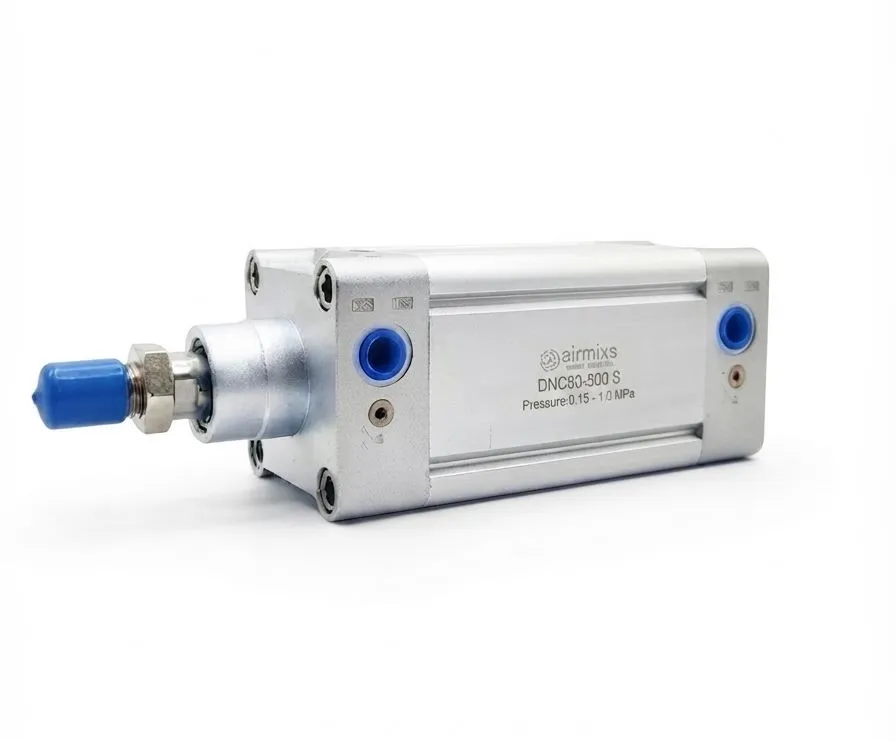

The DNC80-500 S is a heavy-duty double-acting standard pneumatic cylinder built to ISO 15552 specifications. Featuring an 80 mm bore size and an extended 500 mm stroke, it is designed for demanding industrial automation applications requiring long-range linear motion, heavy pushing/pulling, and high-capacity material handling. Engineered with adjustable pneumatic cushioning at both ends, it effectively absorbs kinetic energy and minimizes impact forces during high-speed cycles.
Specification Feature | Technical Parameter |
|---|
Model / Part No. | DNC80-500 S |
Brand | airmixs |
Bore Size | 80 mm |
Stroke Length | 500 mm |
Operation Mode | Double-Acting |
Operating Medium | Compressed Air (Filtered, lubricated or unlubricated) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10 bar) |
Maximum Pressure | 1.5 MPa |
Cushioning | Adjustable pneumatic cushioning at both ends |
Port Size | G3/8 |
Piston Rod Thread | M20x1.5 |
Operating Speed Range | 50 to 500 mm/s |
Ambient Temperature | -20°C to 80°C |
Body Material | Anodized Aluminum Profile |
Seals Material | Polyurethane (PU) / NBR |
