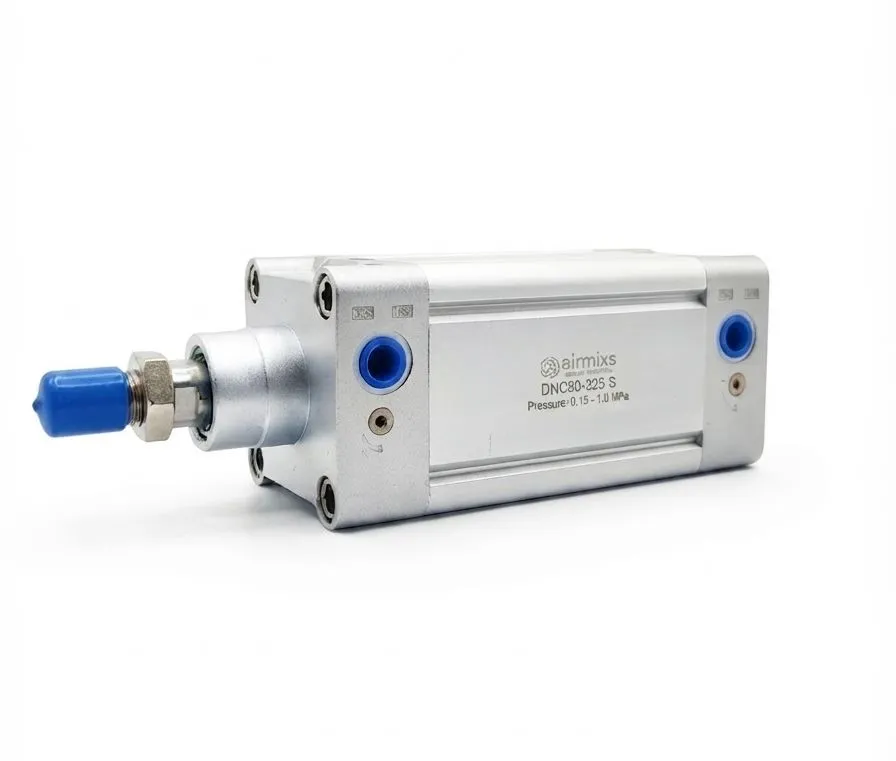

The DNC80-325 S is an engineered double-acting standard pneumatic cylinder compliant with ISO 15552 standards. Featuring an 80 mm bore size and a long 325 mm stroke, it delivers robust linear force and extended reach for heavy-duty industrial automation, material handling, and automated assembly systems. Built with integrated adjustable pneumatic cushioning at both ends, it ensures smooth deceleration and minimizes operational shock under high-speed cycling.
Specification Feature | Technical Parameter |
|---|
Model / Part No. | DNC80-325 S |
Brand | airmixs |
Bore Size | 80 mm |
Stroke Length | 325 mm |
Operation Mode | Double-Acting |
Operating Medium | Compressed Air (Filtered, lubricated or unlubricated) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10 bar) |
Maximum Pressure | 1.5 MPa |
Cushioning | Adjustable pneumatic cushioning at both ends |
Port Size | G3/8 |
Piston Rod Thread | M20x1.5 |
Operating Speed Range | 50 to 500 mm/s |
Ambient Temperature | -20°C to 80°C |
Body Material | Anodized Aluminum Profile |
Seals Material | Polyurethane (PU) / NBR |
