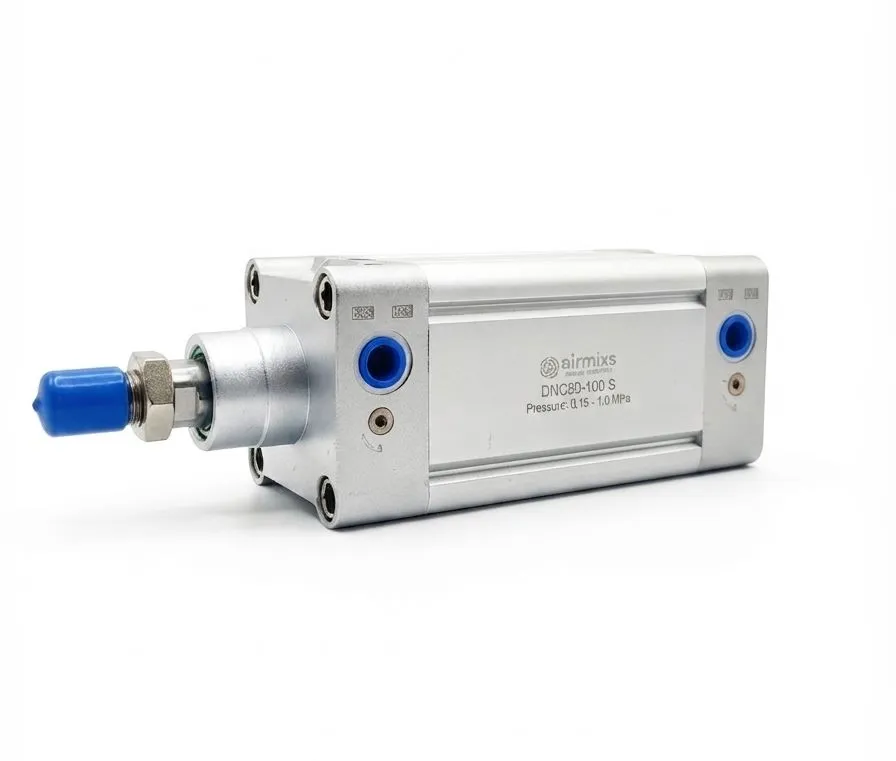

Built for robust industrial automation and high-capacity linear motion tasks, the airmixs DNC80X100-S double-acting pneumatic cylinder offers exceptional durability and precise performance. Manufactured in accordance with ISO 15552 / ISO 6431 standards, this cylinder features adjustable pneumatic cushioning at both ends to dampen high impact forces and minimize noise during operation. It includes a built-in magnetic ring for contactless position monitoring using magnetic proximity switches, enabling smooth integration into automated control systems. The corrosion-resistant aluminum barrel and hard chrome-plated steel piston rod ensure a long operating lifespan under demanding conditions.
Feature / Specification | Detail |
|---|
Brand | airmixs |
Part Number / Model | DNC80X100-S |
Standard Compliance | ISO 15552 (Interchangeable with ISO 6431 / VDMA 24562) |
Operation Type | Double-Acting Single-Ended Piston Actuator |
Bore Diameter | 80 mm |
Stroke Length | 100 mm |
Pneumatic Port Size | G3/8" (BSPP) |
Piston Rod Thread | M20 x 1.5 Male Threaded Rod |
Operating Pressure Range | 0.1 to 1.0 MPa (approx. 1.0 to 10 bar / 14 to 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Cushioning Type | Adjustable Air Cushioning (Both Ends) |
Fluid / Medium | Filtered Compressed Air (Lubricated or Unlubricated, 40-micron filter) |
Operating Temperature | -20°C to +80°C |
Position Detection | Magnetic Piston (Standard equipped for reed/electronic sensors) |
Materials of Construction | Anodized Aluminum (Cylinder Barrel), Die-Cast Aluminum (End Covers), Hard Chrome Plated High-Alloy Steel (Piston Rod), Polyurethane/NBR (Seals) |
