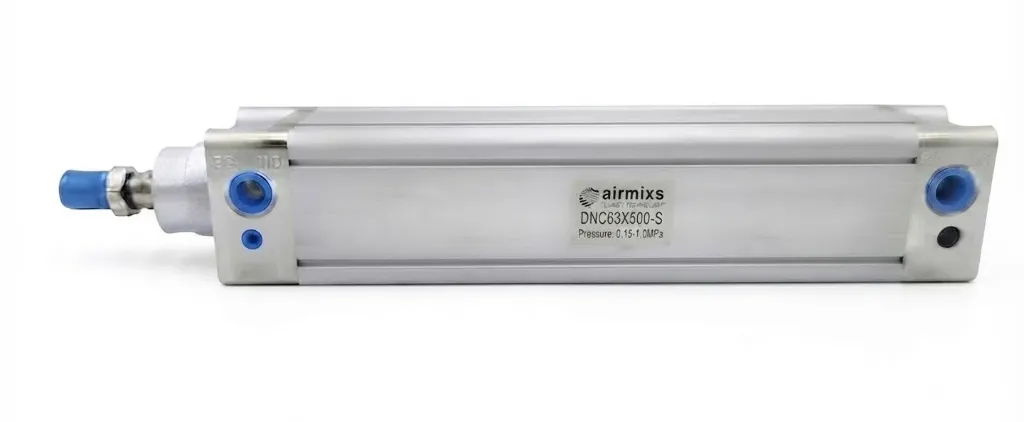

The AIRMIXS DNC63-500 S is an ISO 15552 compliant, double-acting standard pneumatic profile cylinder designed for robust linear actuation in automation machinery, long-reach linear drives, and heavy-duty material handling equipment. Featuring a 63 mm bore diameter and an extended 500 mm stroke length, this cylinder provides continuous, high-force linear performance over longer working distances.
Built with an extruded anodized aluminum profile body with integrated slots for flush sensor mounting, a hard chrome-plated steel piston rod, and adjustable pneumatic end-of-stroke cushioning (PPV), this unit absorbs heavy kinetic impact to minimize vibration and prolong service life. The "S" designation indicates built-in magnetic piston capability for effortless connection with magnetic position sensors.
Characteristic / Parameter | Technical Value / Specification |
|---|
Brand / Manufacturer | AIRMIXS |
Model / Part Number | DNC63-500 S |
Standard Compliance | ISO 15552 / VDMA 24562 / DIN ISO 6431 |
Actuation Type | Double-Acting |
Bore Size | 63 mm |
Stroke Length | 500 mm |
Position Sensing | Integrated Magnetic Piston ("S" variant) |
Cushioning Type | Adjustable Pneumatic End Cushioning (PPV) |
Piston Rod Style | Single-ended, male thread (M16x1.5) |
Theoretical Force (at 6 bar) | Advance: ~1870 N / Return: ~1682 N |
Operating Medium | Compressed air (filtered, lubricated or non-lubricated) |
Operating Pressure | 1.0 – 10.0 bar (0.1 – 1.0 MPa) |
Temperature Range | -20 °C to +80 °C |
Body Material | Anodized Aluminum Profile |
Piston Rod Material | Hard Chrome-Plated Carbon Steel |
Pneumatic Connection Port | G 3/8" |
