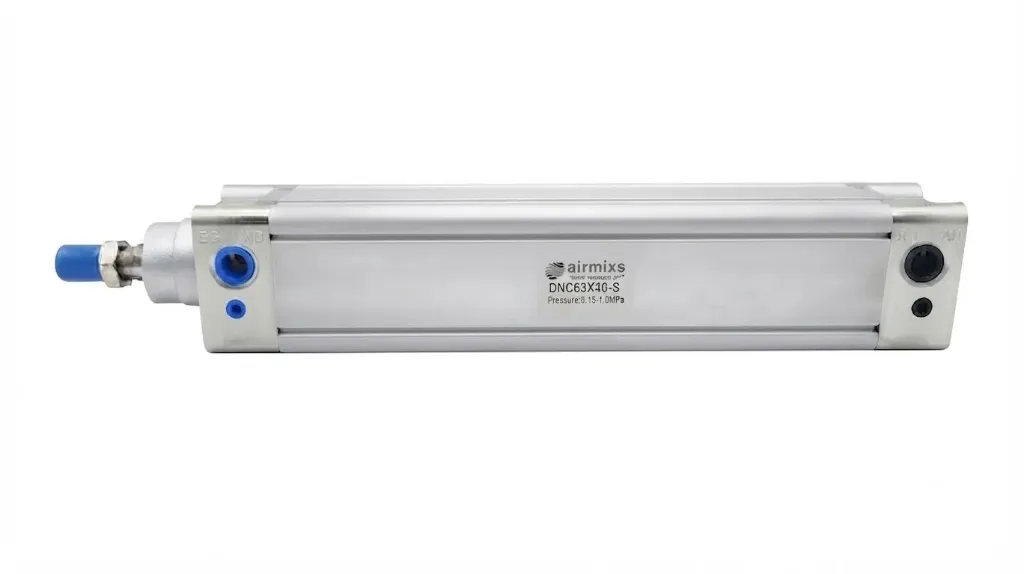

The airmixs DNC63-40-S is a double-acting standard pneumatic air cylinder engineered to ISO 15552 (ISO 6431) specifications, built for rigorous linear motion and industrial automation duties. Featuring a 63mm bore size and a 40mm stroke length, this unit comes integrated with adjustable pneumatic cushioning at both ends to ensure smooth deceleration and minimized impact shock. Constructed with an anodized aluminum profile barrel and durable end covers, it guarantees long-term reliability in demanding factory environments. Equipped with a magnetic piston as standard, it supports flexible position sensing using magnetic proximity switches.
Technical Feature | Specification |
|---|
Brand | airmixs |
Model / Ordering Code | DNC63-40-S |
Actuator Type | Standard Pneumatic Cylinder (Double-Acting) |
Design Standard | ISO 15552 / ISO 6431 / VDMA 24562 |
Bore Diameter | 63 mm |
Stroke Length | 40 mm |
Operating Medium | Filtered, Lubricated, or Non-Lubricated Compressed Air |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10.0 bar / 21.7 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar) |
Port Size / Thread | G3/8" |
Piston Rod Thread | M16x1.5 |
Cushioning Type | Adjustable Pneumatic Cushioning (Both Ends) |
Position Detection | Magnetic Piston (Standard) |
Operating Temperature Range | -20°C to 80°C (-4°F to 176°F) |
Body Material | Anodized Aluminum Alloy |
Piston Rod Material | Hard Chrome-Plated Carbon Steel / High-Alloy Steel |
