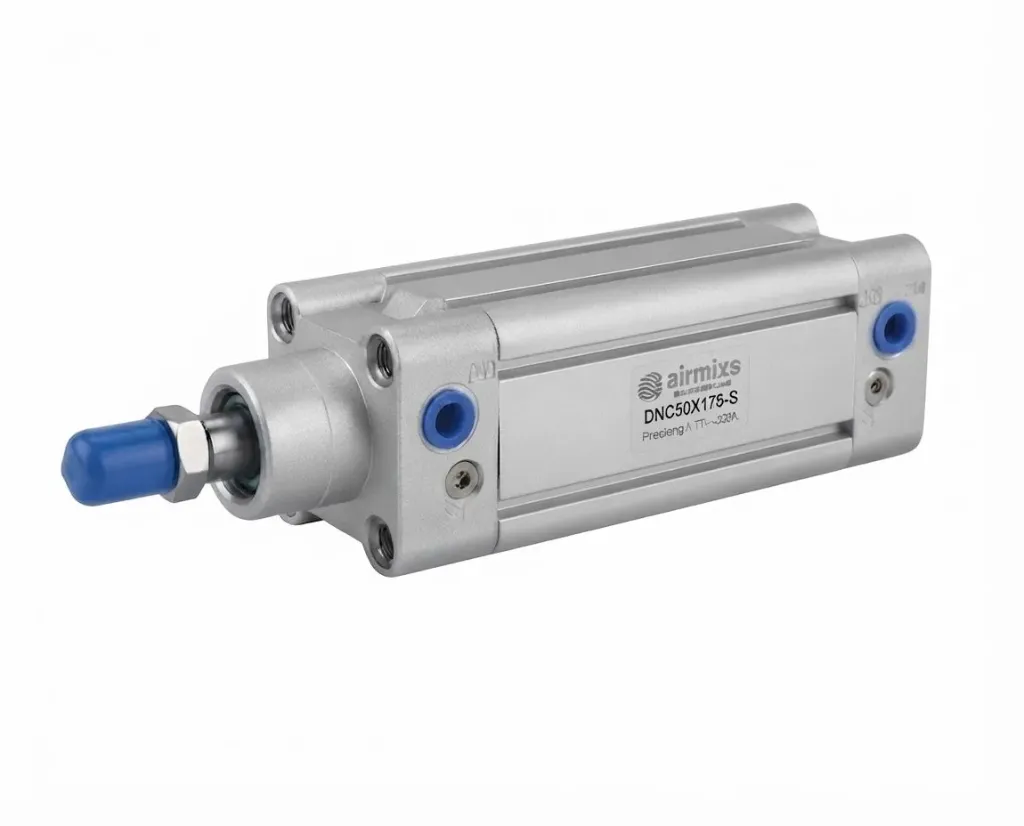

The AIRMIXS DNC-50-175 S is a high-performance ISO 15552 profile pneumatic cylinder designed for precise linear motion control in industrial automation. Featuring a 50 mm piston bore and 175 mm stroke, this double-acting cylinder delivers smooth operational force and reliable performance under high duty cycles. It comes equipped with adjustable pneumatic end-position cushioning (PPV) to absorb kinetic energy and reduce impact force, as well as integrated profile slots for proximity sensor positioning. Its compact aluminum barrel construct ensures durability and easy integration across various mounting configurations.
Specification Parameter | Technical Data |
|---|
Manufacturer | AIRMIXS |
Model Code | DNC-50-175-PPV-A |
Standard Compliance | ISO 15552 (VDMA 24562) |
Operation Mode | Double-acting |
Piston Bore Diameter | 50 mm |
Stroke Length | 175 mm |
Piston Rod Thread | M16 x 1.5 (Male) |
Pneumatic Connection | G 1/4 |
Cushioning Type | Pneumatic, adjustable at both ends (PPV) |
Position Sensing | Sensor-ready via proximity switch slots (-A) |
Operating Pressure Range | 0.6 bar to 12 bar (0.06 MPa to 1.2 MPa) |
Theoretical Force (Advance, 6 bar) | ~1,178 N |
Theoretical Force (Retract, 6 bar) | ~990 N |
Ambient Temperature Range | -20 °C to +80 °C |
Cylinder Barrel Material | Wrought aluminum alloy, smooth-anodized |
Cover Material | Die-cast aluminum coated |
Piston Rod Material | High-alloy steel |
Seal Material | TPE-U (PU) / NBR |
