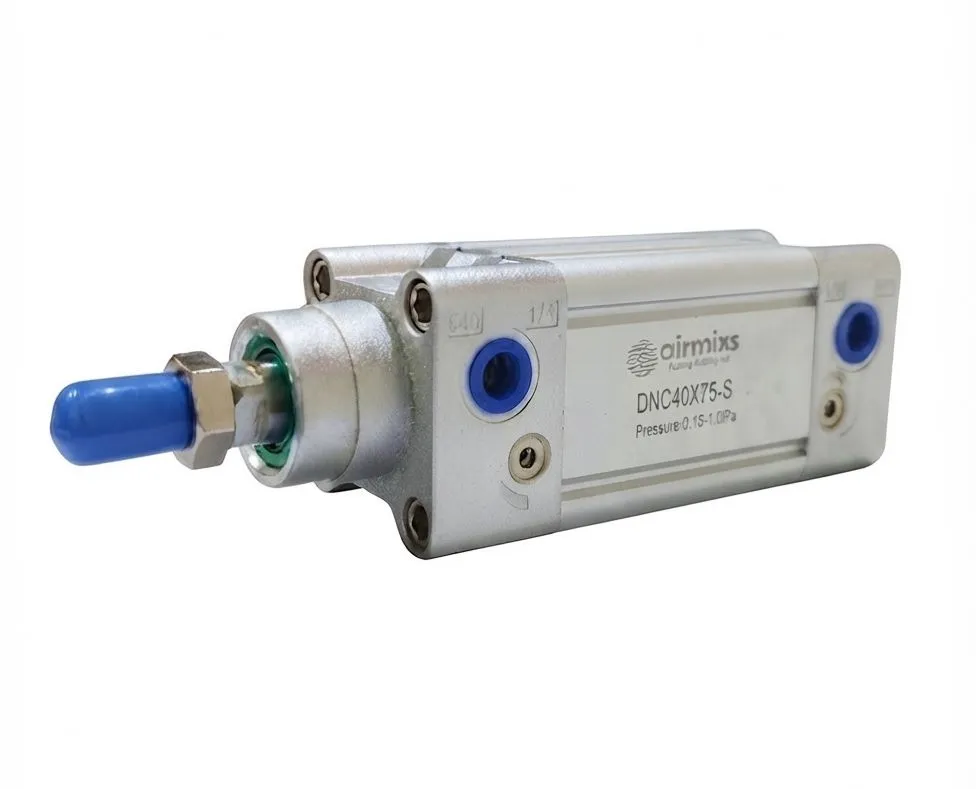

The DNC-40-75 S is a double-acting standard profile pneumatic cylinder designed in compliance with ISO 15552 standards. Engineered for demanding industrial automation environments, it provides smooth linear movement, dependable force generation, and adjustable pneumatic cushioning at both ends for optimal impact energy absorption.
Technical Feature | Specification Value |
|---|
Brand / Series | AIRMIXS / DNC Series (ISO 15552) |
Piston Diameter (Bore Size) | 40\text{ mm} |
Stroke Length | 75\text{ mm} |
Mode of Operation | Double-acting |
Piston Rod Thread | M12x1.25 (Male Thread) |
Pneumatic Connection / Port | G1/4 |
Cushioning | PPV: Pneumatic cushioning, adjustable at both ends |
Position Detection | Via proximity switch (Integrated magnetic piston) |
Operating Pressure | 0.6\text{ bar} \dots 12\text{ bar} (0.06\text{ MPa} \dots 1.2\text{ MPa} |
Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
Ambient Temperature | 20^\circ\text{C} \dots 80^\circ\text{C} |
Theoretical Force (at 6 bar) | Advance: 754\text{ N} / Return: 633\text{ N} |
Weight (Basic / Stroke-dependent) | 800\text{ g} basic weight + 45\text{ g} per 10\text{ mm} stroke |
