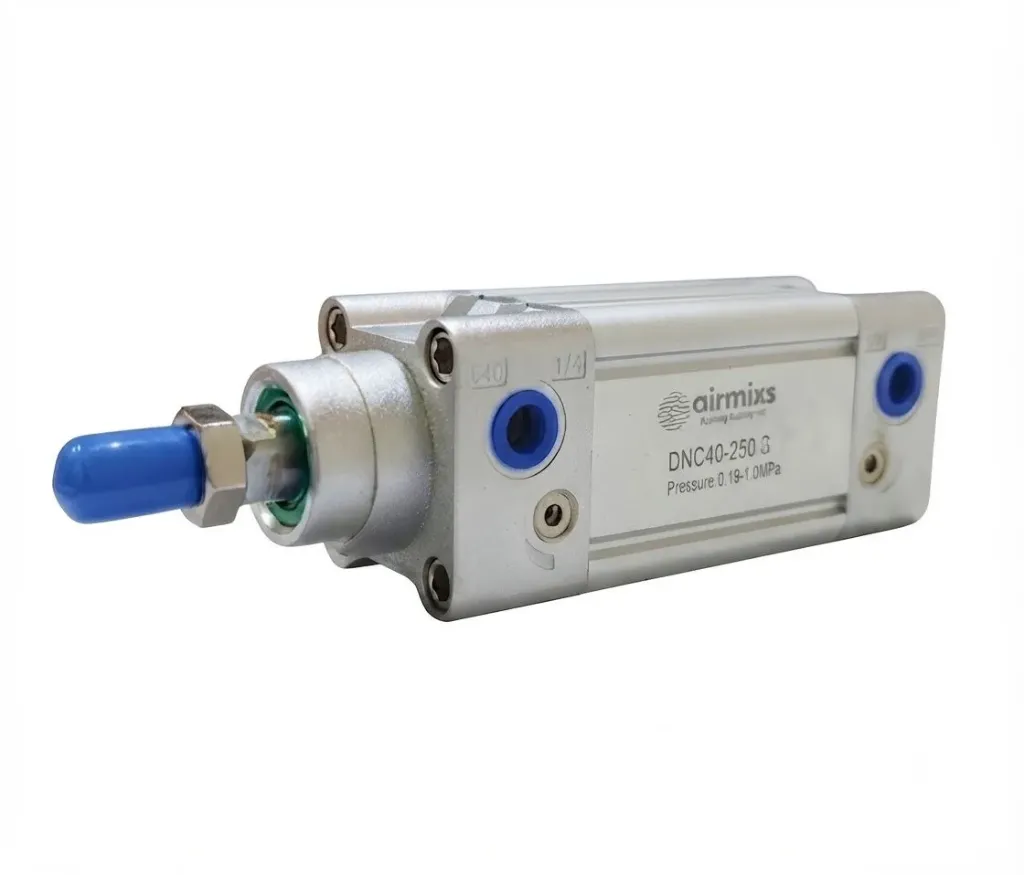

The DNC40-250 S is an ISO 15552 compliant, double-acting standard pneumatic cylinder featuring a 40 mm bore and a 250 mm stroke length. Engineered for high-performance linear actuation, its modern profile design includes integrated sensor slots that allow flush mounting of proximity switches for smooth position feedback without adding external bulk.
Built with a magnetic piston as standard ("S" designation), it enables effortless automated stroke sensing. It features adjustable pneumatic end-position cushioning (PPV) at both ends to absorb kinetic energy, minimize end-of-stroke impact, reduce operating noise, and protect surrounding mechanical assemblies during high-speed operations.
Feature | Specification |
|---|
Model Number | DNC40-250 S |
Standard Compliance | ISO 15552 (DIN ISO 6431 / VDMA 24562) |
Action Type | Double-Acting |
Piston Bore Size | 40 mm |
Stroke Length | 250 mm |
Special Feature S | Single-Rod / Magnetic Piston for Proximity Sensing |
Operating Pressure Range | 0.6 to 12 Bar (0.06 to 1.2 MPa / 87 to 174 PSI) |
Operating Temperature Range | -20°C to +80°C |
Cushioning Type | Adjustable Pneumatic End-Position Cushioning (PPV) |
Primary Operating Media | Filtered Compressed Air (Lubricated or Unlubricated) |
