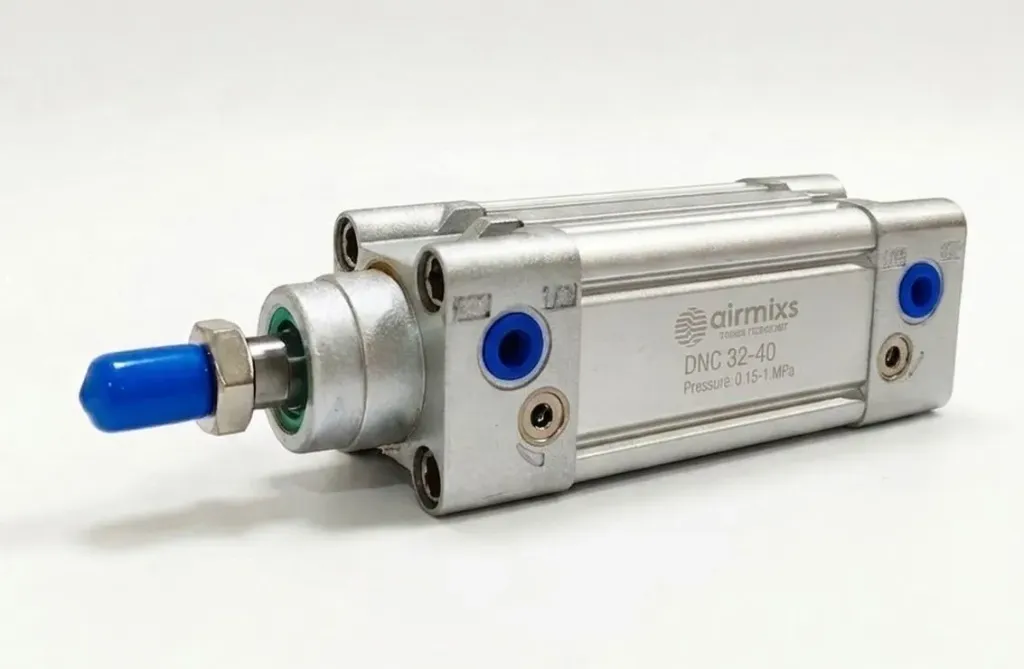

The DNC 32-40 is a heavy-duty, double-acting pneumatic profile cylinder engineered according to ISO 15552 standards. Featuring a 32mm bore and a 40mm stroke length, this cylinder delivers reliable linear actuation, precise control, and smooth motion for industrial automation equipment. It comes standard with adjustable pneumatic end-position cushioning (PPV) and integrated magnetic position detection for proximity switches, making it ideal for compact clamping, lifting, and pressing applications.
Parameter | Specification |
|---|
Model Code | DNC-32-40 / DNC-32-40-PPV-A |
Standard Compliance | ISO 15552 / VDMA 24562 |
Bore Size (Piston Diameter) | 32 mm |
Stroke Length | 40 mm |
Operating Mode | Double-Acting |
Operating Pressure | 0.6 – 12 bar (0.06 – 1.2 MPa) |
Working Medium | Filtered Compressed Air (Lubricated or Unlubricated) |
Piston Rod Thread | M10 × 1.25 (Male Thread) |
Pneumatic Connection Port | G 1/8 |
Cushioning Type | PPV (Adjustable pneumatic cushioning at both ends) |
Position Sensing | Built-in magnet for sensor mounting |
Barrel Material | Anodized Wrought Aluminum Alloy |
Ambient Temperature | -20°C to +80°C |
Mounting Orientation | Any |
