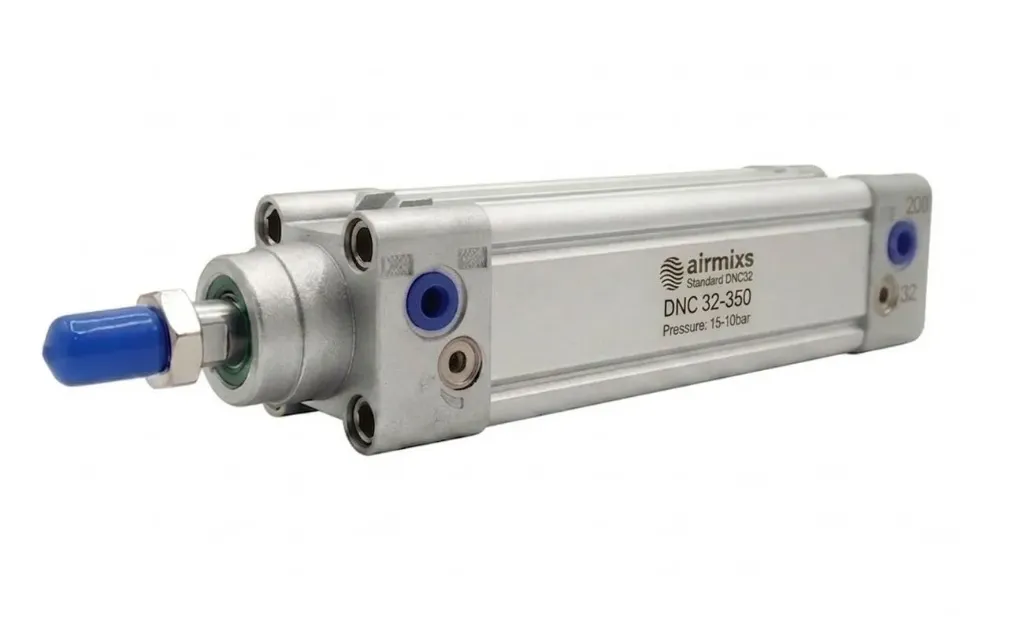

The AIRMIXS DNC 32-350 is a high-performance ISO 15552 standard pneumatic cylinder designed for precise linear automation and heavy-duty industrial application. Featuring a 32 mm bore diameter and a 350 mm stroke length, this double-acting profile cylinder offers robust aluminum housing, smooth operation, adjustable end-position cushioning, and integrated proximity sensor slots for position feedback.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Code | DNC 32-350 |
Standard | ISO 15552 / ISO 6431 |
Action Type | Double-Acting |
Bore Size | 32 mm |
Stroke Length | 350 mm |
Operating Pressure Range | 1.5 – 10 bar (0.15 – 1.0 MPa) |
Pneumatic Connection Port | G 1/8" |
Piston Rod Thread | M10 × 1.25 |
Theoretical Force (Advancing at 6 bar) | ~483 N |
Theoretical Force (Retracting at 6 bar) | ~415 N |
Cushioning | Pneumatic adjustable cushioning at both ends |
Position Sensing | Integrated slots for proximity magnetic sensors |
Body Material | Anodized Aluminum Alloy Profile |
Medium | Filtered Compressed Air (lubricated or unlubricated) |
