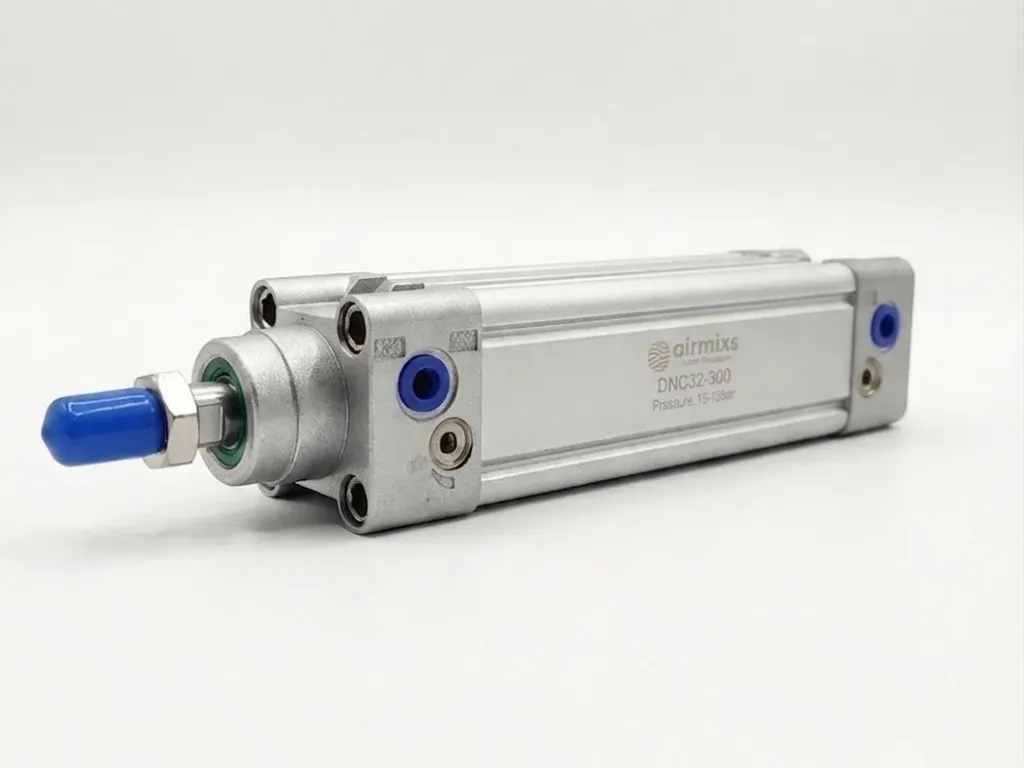

The DNC 32-300 is a heavy-duty, long-stroke double-acting pneumatic profile cylinder built strictly to ISO 15552 standards. Combining a 32mm bore diameter with a full 300mm stroke length, this cylinder delivers reliable, extended-range linear power suited for heavy transfer systems, long-distance pushing, and large automated machinery setups. It is designed with adjustable pneumatic end-position cushioning (PPV) to dampen shock at stroke ends and features a built-in magnetic piston for easy position switch installation.
Parameter | Specification |
|---|
Model Code | DNC-32-300 / DNC-32-300-PPV-A |
Standard Compliance | ISO 15552 / VDMA 24562 |
Bore Size (Piston Diameter) | 32 mm |
Stroke Length | 300 mm |
Operating Mode | Double-Acting |
Operating Pressure | 0.6 – 12 bar (0.06 – 1.2 MPa) |
Working Medium | Filtered Compressed Air (Lubricated or Unlubricated) |
Piston Rod Thread | M10 × 1.25 (Male Thread) |
Pneumatic Connection Port | G 1/8 |
Cushioning Type | PPV (Adjustable pneumatic end-position cushioning) |
Position Sensing | Integrated magnet for proximity sensors |
Barrel Material | Anodized Wrought Aluminum Alloy |
Ambient Temperature | -20°C to +80°C |
Mounting Position | Any |
