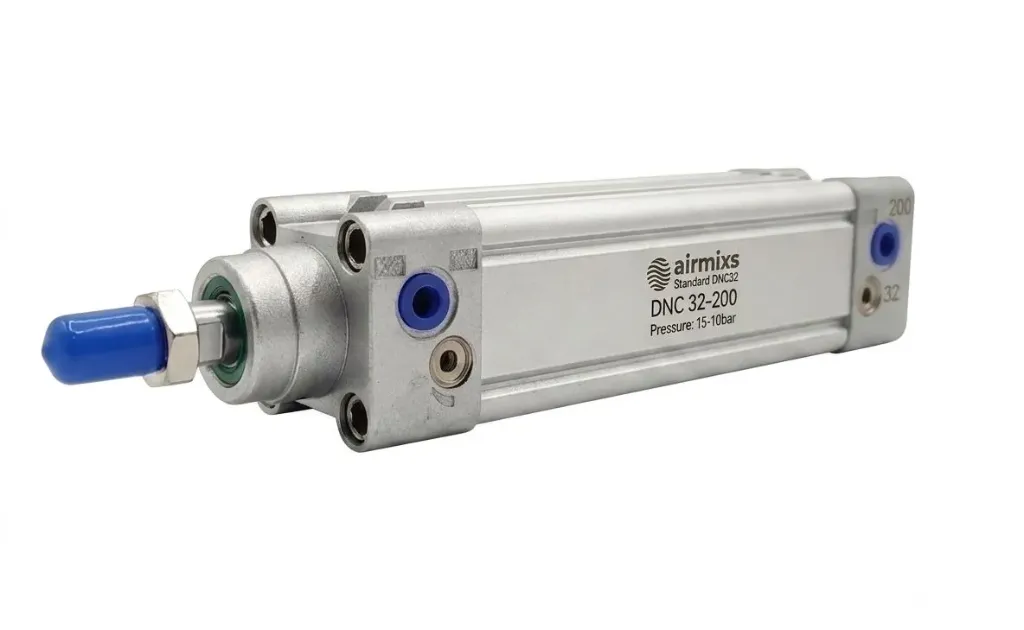

The DNC 32-200 is a long-stroke, double-acting pneumatic profile cylinder manufactured to meet ISO 15552 standards. Combining a 32mm bore diameter with an extended 200mm stroke length, this cylinder delivers steady linear actuation across longer travel distances, making it ideal for packaging, automated sorting, long-reach pushing, and material handling systems. It comes equipped with dual adjustable end-position cushioning (PPV) to minimize impact stress and mechanical noise, along with an internal magnetic ring for reliable position sensing with proximity switches.
Parameter | Specification |
|---|
Model Code | DNC-32-200 / DNC-32-200-PPV-A |
Standard Compliance | ISO 15552 / VDMA 24562 |
Bore Size (Piston Diameter) | 32 mm |
Stroke Length | 200 mm |
Operating Mode | Double-Acting |
Operating Pressure | 0.6 – 12 bar (0.06 – 1.2 MPa) |
Working Medium | Filtered Compressed Air (Lubricated or Unlubricated) |
Piston Rod Thread | M10 × 1.25 (Male Thread) |
Pneumatic Connection Port | G 1/8 |
Cushioning Type | PPV (Adjustable pneumatic end-position cushioning) |
Position Sensing | Integrated magnet for proximity sensors |
Barrel Material | Anodized Wrought Aluminum Alloy |
Ambient Temperature | -20°C to +80°C |
Mounting Position | Any |
