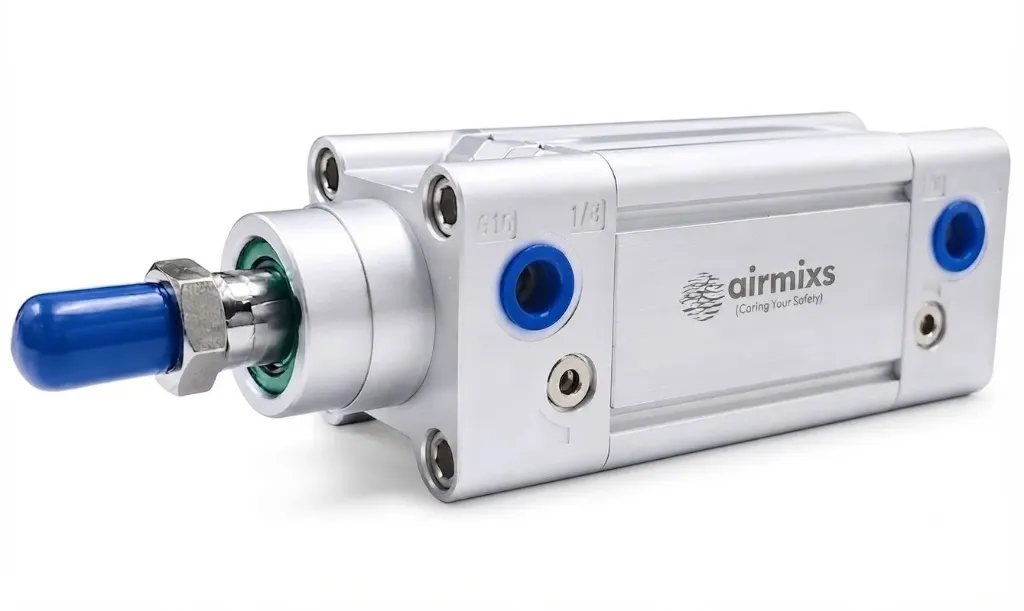

The AIRMIXS DNC125-325-S ISO Standard Pneumatic Cylinder is a heavy-duty, double-acting linear actuator manufactured in strict accordance with ISO 15552 (ISO 6431) international standards. Combining a powerful 125 mm bore with an extended 325 mm stroke, this model delivers exceptional force and long-reach performance for demanding industrial pressing, clamping, and automation lines. It features adjustable pneumatic cushioning at both end-caps for smooth deceleration and an integrated magnetic piston for reliable proximity switch tracking.
Feature / Specification | Detail |
|---|
Brand / Series | AIRMIXS DNC Series (ISO 15552 / ISO 6431) |
Model Code | DNC125-325-S |
Bore Size | 125 mm |
Stroke Length | 325 mm |
Action Type | Double Acting, Single Rod |
Operating Medium | Filtered Compressed Air |
Operating Pressure Range | 0.1 to 1.0 MPa (1.0 to 10.0 bar / 14 to 145 PSI) |
Port Size | G1/2" (or G3/4" depending on end-cap configuration) |
Piston Rod Thread | M27x2 |
Cushion Type | Adjustable Pneumatic Cushioning (Both Ends) |
Position Sensing | Magnetic Piston Standard (Proximity Switch Compatible) |
Operating Temperature | -20°C to +80°C |
Body Material | Extruded Anodized Aluminum Alloy Profile |
