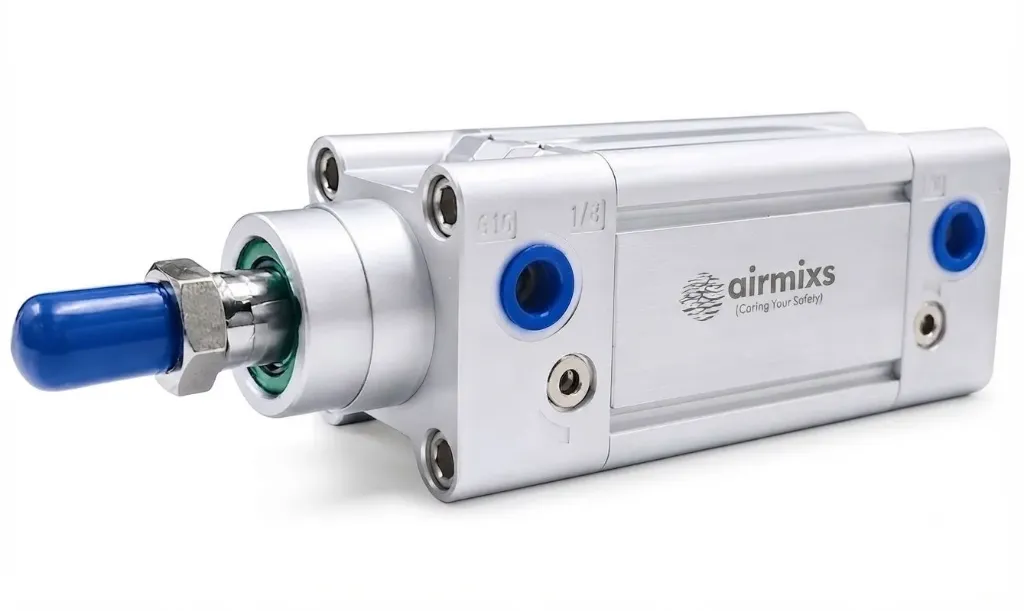

The AIRMIXS DNC100-250-S ISO Standard Pneumatic Cylinder is a high-performance, double-acting industrial actuator designed in strict adherence to ISO 15552 (ISO 6431) international standards. Featuring an extended 250 mm stroke and a heavy-duty 100 mm bore, this unit delivers reliable linear motion and high force output for rigorous industrial automation applications. It is equipped with adjustable pneumatic cushioning at both end-caps for smooth deceleration and an integrated magnetic piston for precise proximity switch feedback.
Feature / Specification | Detail |
|---|
Brand / Series | AIRMIXS DNC Series (ISO 15552 / ISO 6431) |
Model Code | DNC100-250-S |
Bore Size | 100 mm |
Stroke Length | 250 mm |
Action Type | Double Acting, Single Rod |
Operating Medium | Filtered Compressed Air (Lubricated or Unlubricated) |
Operating Pressure Range | 0.1 to 1.0 MPa (1.0 to 10.0 bar / 14 to 145 PSI) |
Port Size | G1/2" (1/2" BSPP) |
Piston Rod Thread | M20x1.5 |
Cushion Type | Adjustable Pneumatic Cushioning (Both Ends) |
Position Sensing | Magnetic Piston Standard (Proximity Switch Compatible) |
Operating Temperature | -20°C to +80°C |
Body Material | Extruded Anodized Aluminum Alloy Profile |
